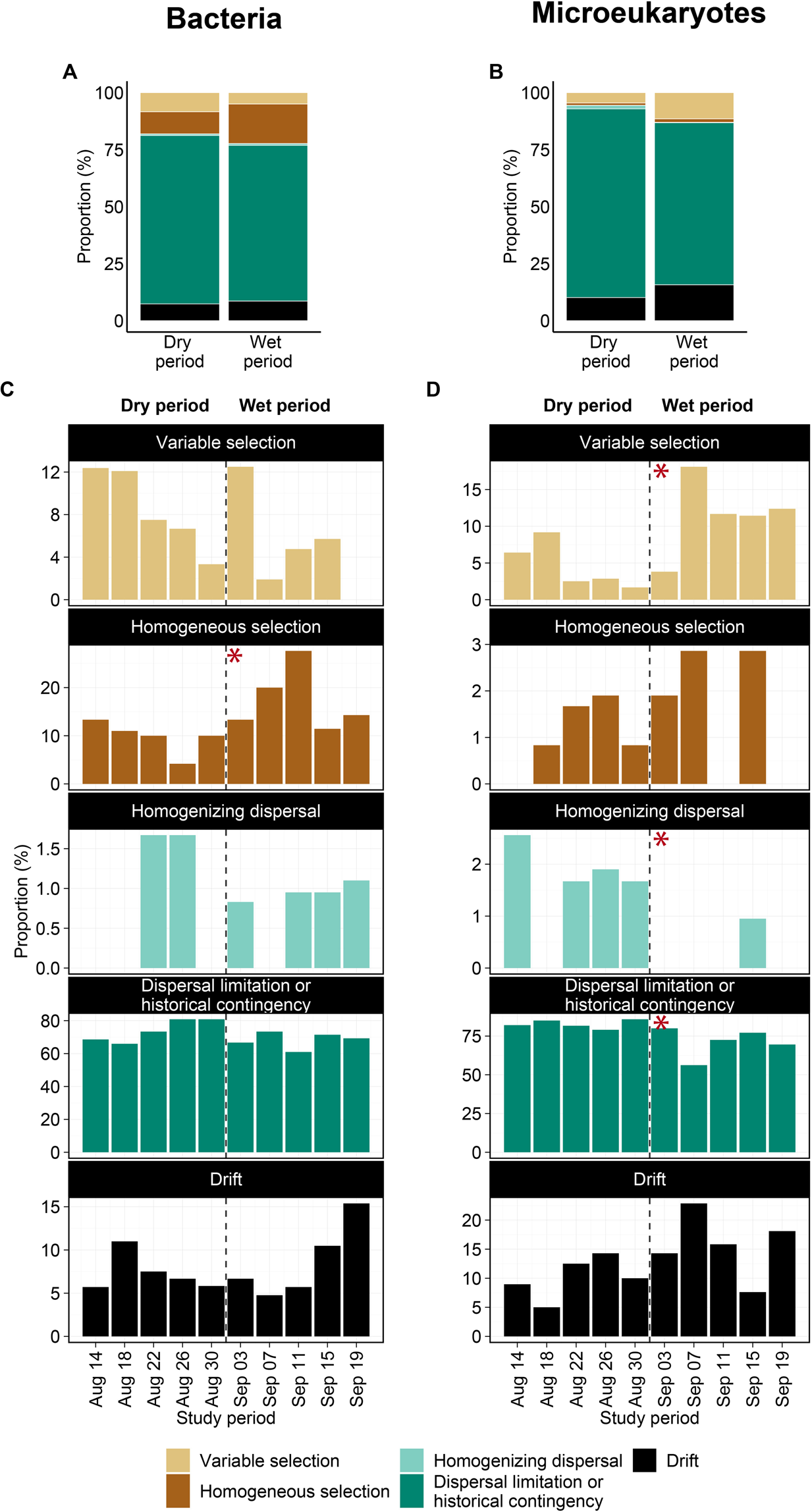

Figure 5
Overall (A,B) and temporal (C,D) dynamics of the relative importance of different community assembly processes expressed as the proportion of community pairs assembled either by species-sorting (variable or homogeneous selection), dispersal limitation or historical contingency, homogenizing dispersal or drift for bacteria (A,C) and microeukaryotic (B,D) communities. Note that the scales are not equal on the C and D facet plot. The dashed lines refer to the division between the dry and wet period, and red asterisks indicate significant differences between them (Kruskal-Wallis test, significance at p < 0.05 level).
