Figure 1

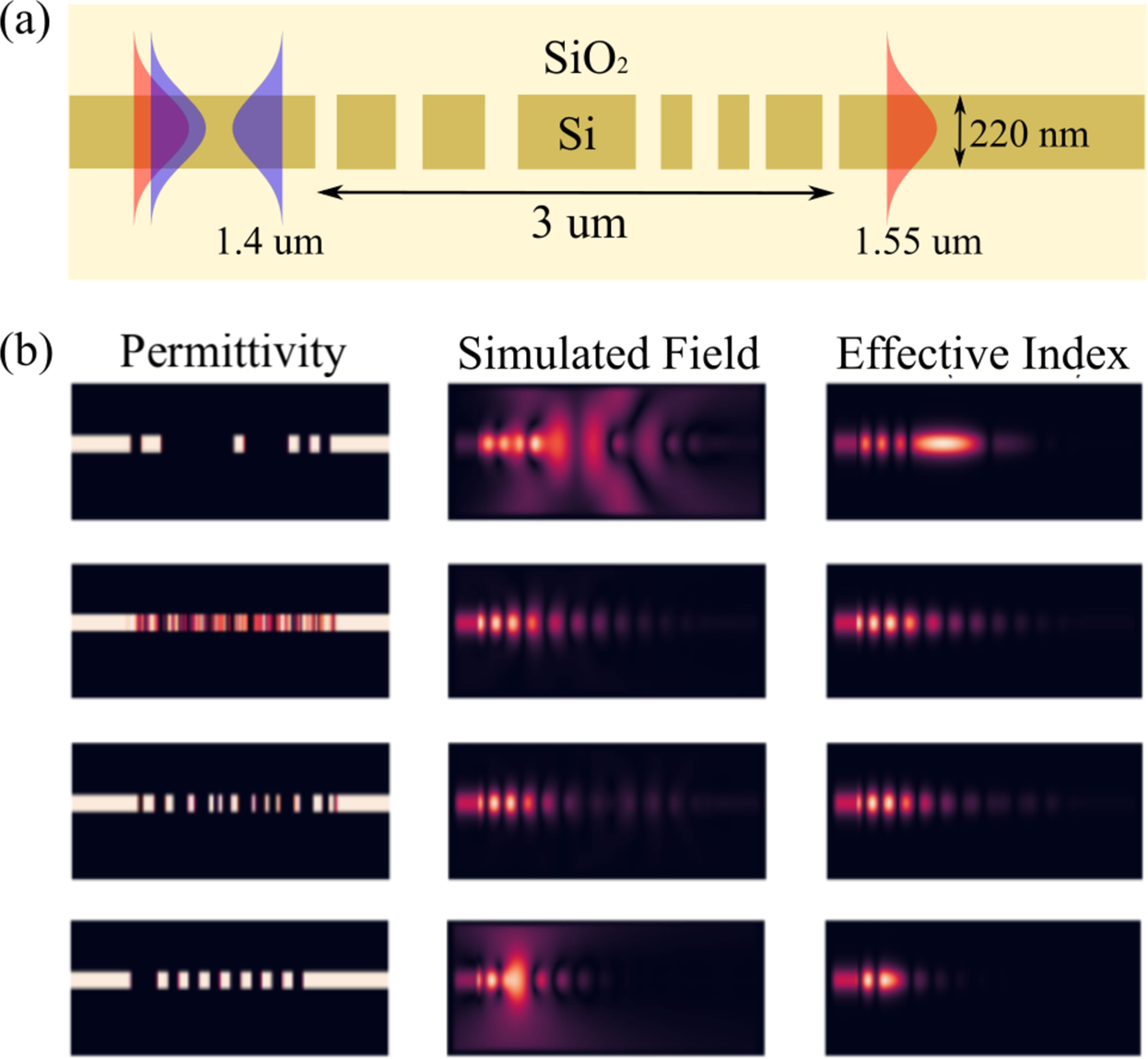

(a) Schematic of the grating splitter device that comprises the dataset. All the gratings in the dataset are 3 μm long and are designed for a 220 nm silicon-on-insulator (SOI) platform with oxide cladding. We use a uniform spatial discretization of 20 nm while representing Eq. 1 as a system of linear equations. The resulting system of linear equations has 229 × 90 = 20,610 unknown complex numbers. (b) Visualizing samples from the dataset — shown are permittivity distribution, simulated electric fields and effective index fields for 4 randomly chosen samples. All fields are shown at a wavelength of 1.4 μm.
