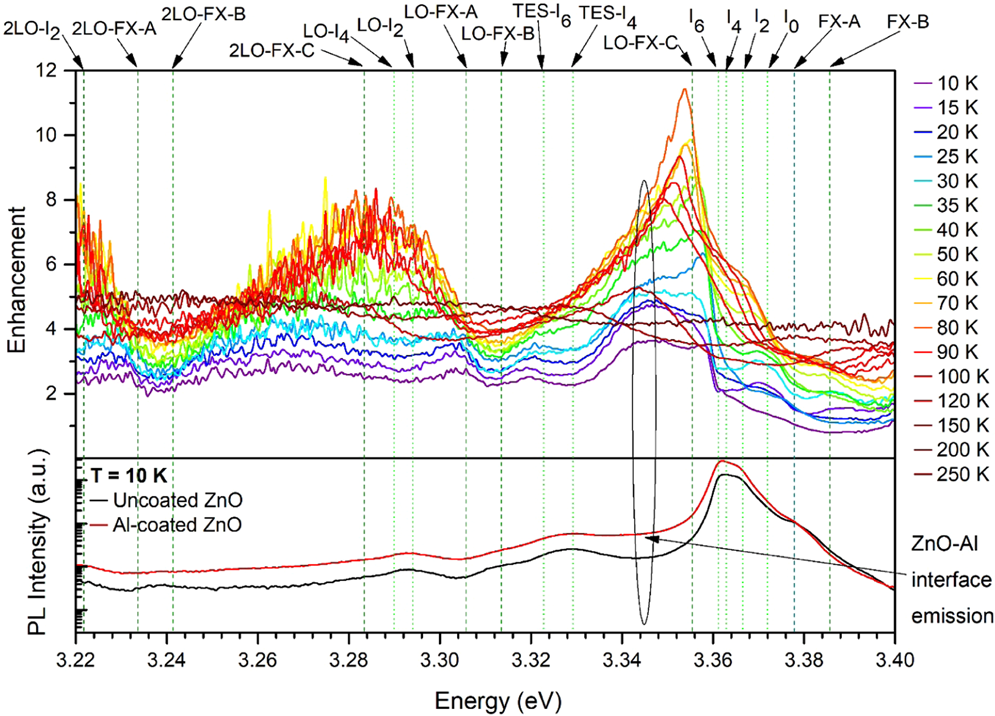

Figure 4

Bottom: PL spectra of the uncoated (black) and Al-coated (red) ZnO at 10 K. Top: Temperature-resolved PL enhancement factor as a function of energy. Dottedgreen lines illustrate the DBX-related transitions in ZnO, while the dashed olive lines represent the FX-related emissions. P = 2.1 mW.
