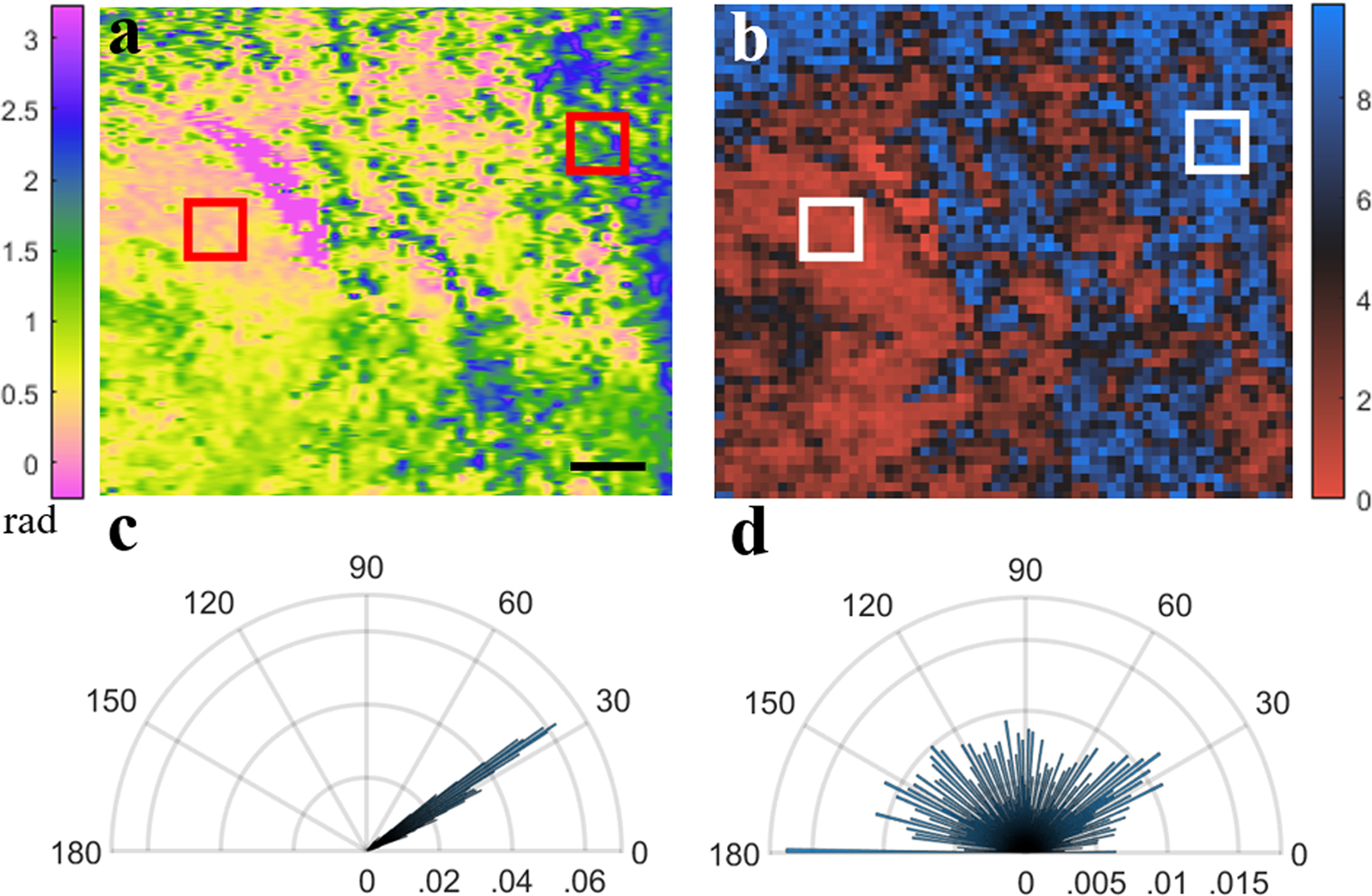

Example demonstrating OA entropy measurement using data obtained from skin. (a) en face OA map from approximately 150 μm 2 D planes into the dermis, and (b) corresponding OA entropy map, using 100 μm2 3 D blocks for entropy calculation. (c,d) The polar histograms for a low entropy (left highlighted region on panel B) and high entropy (right highlighted region on panel B), respectively. Scale bar, 1 mm.
