Figure 2

From: Genome-wide inference of the Camponotus floridanus protein-protein interaction network using homologous mapping and interacting domain profile pairs

Figure 2

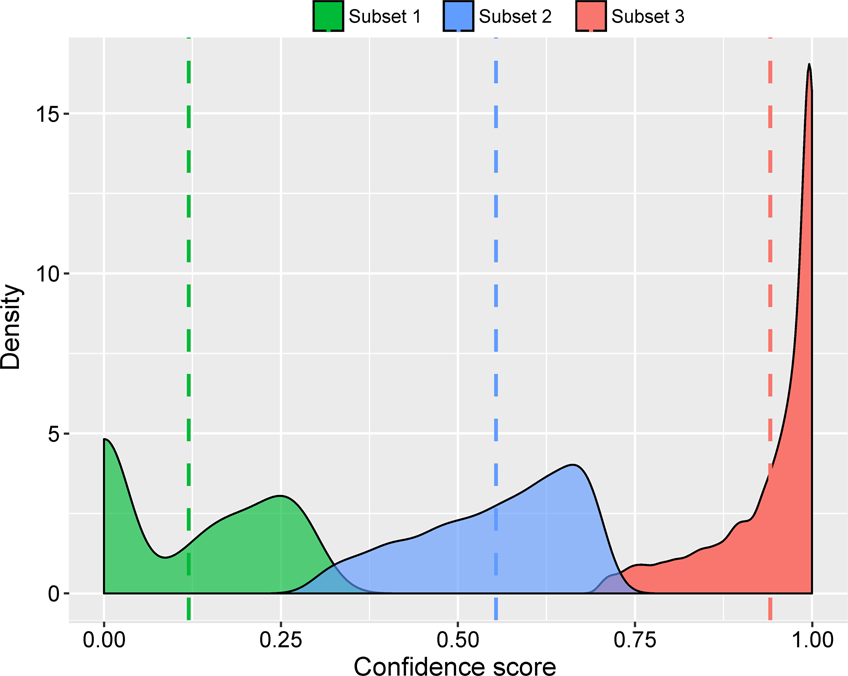

Density plot of the confidence scores for interactions in the C. floridanus interactome. How sure are the predicted protein-protein interactions? The distribution of the different confidence levels were computed with CAPPIC31. Score distributions were separated into low, medium and high confidence category and the density for each category was plotted. In the three subsets scores range between 0 and 0.3 for subset 1 (green, low confidence), 0.3 and 0.7 for subset 2 (blue, medium confidence) and 0.7 and 1 for subset 3 (red, high confidence). Stippled coloured lines indicate median values for the different categories.
