Figure 12 | Scientific Reports

Figure 12

From: Pyrocatechol, a component of coffee, suppresses LPS-induced inflammatory responses by inhibiting NF-κB and activating Nrf2

Figure 12

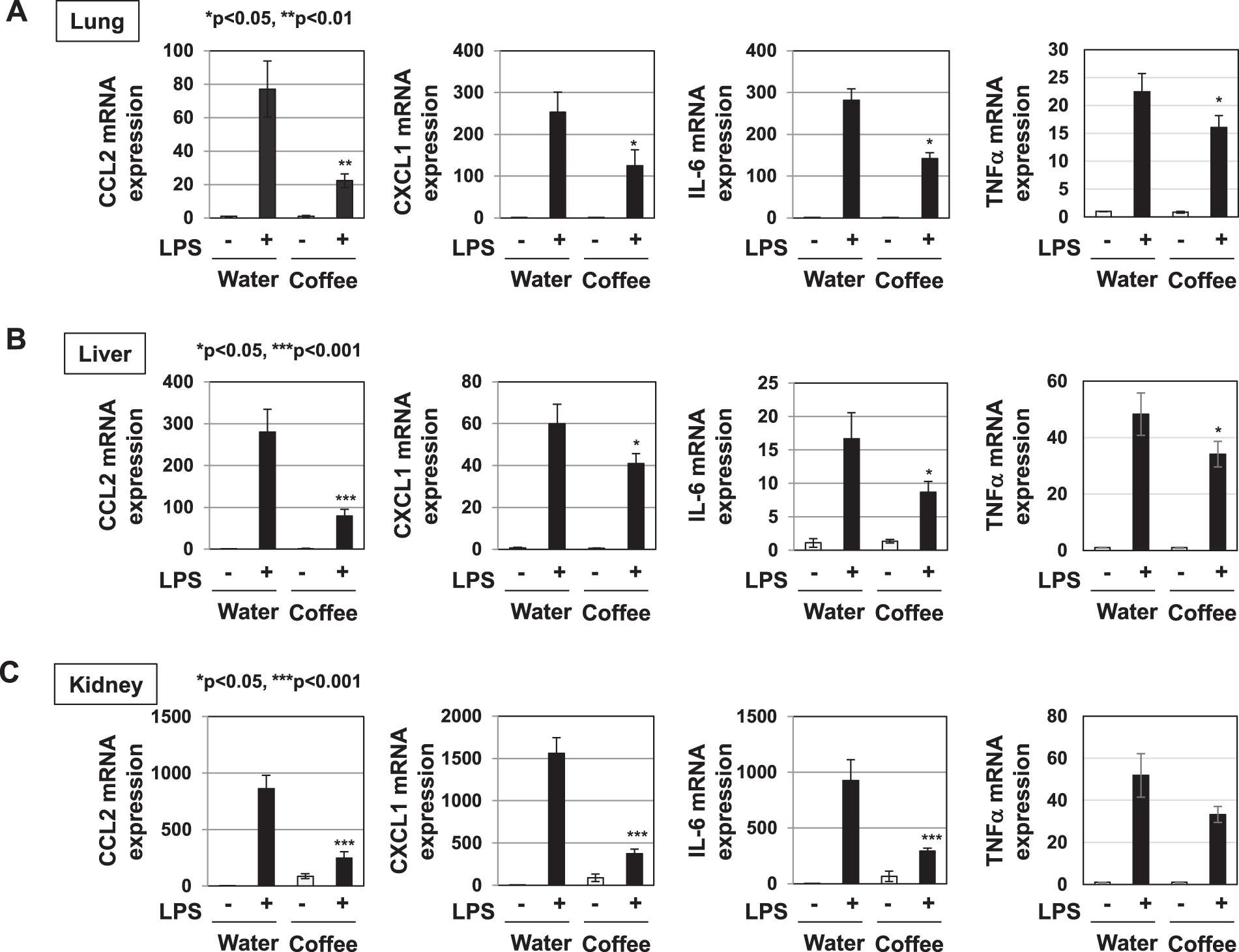

Administration of the extract of roasted coffee beans significantly prevents the LPS-induced expression of CCL2, CXCL1, IL-6, and TNFα in mice. Male C57BL/6 mice were given water or 60% (v/v) coffee extract for 3 weeks and then injected intraperitoneally with PBS or LPS (200 μg/mouse) (6 mice per group). Seven hours after the injection of PBS or LPS, total RNA was extracted from the lungs (A), liver (B), and kidneys (C). The mRNA expression of CCL2, CXCL1, IL-6, and TNFα was assessed by RT-PCR. GAPDH mRNA was analyzed as an internal control. Values are means ± SD from six independent experiments.
