Figure 1

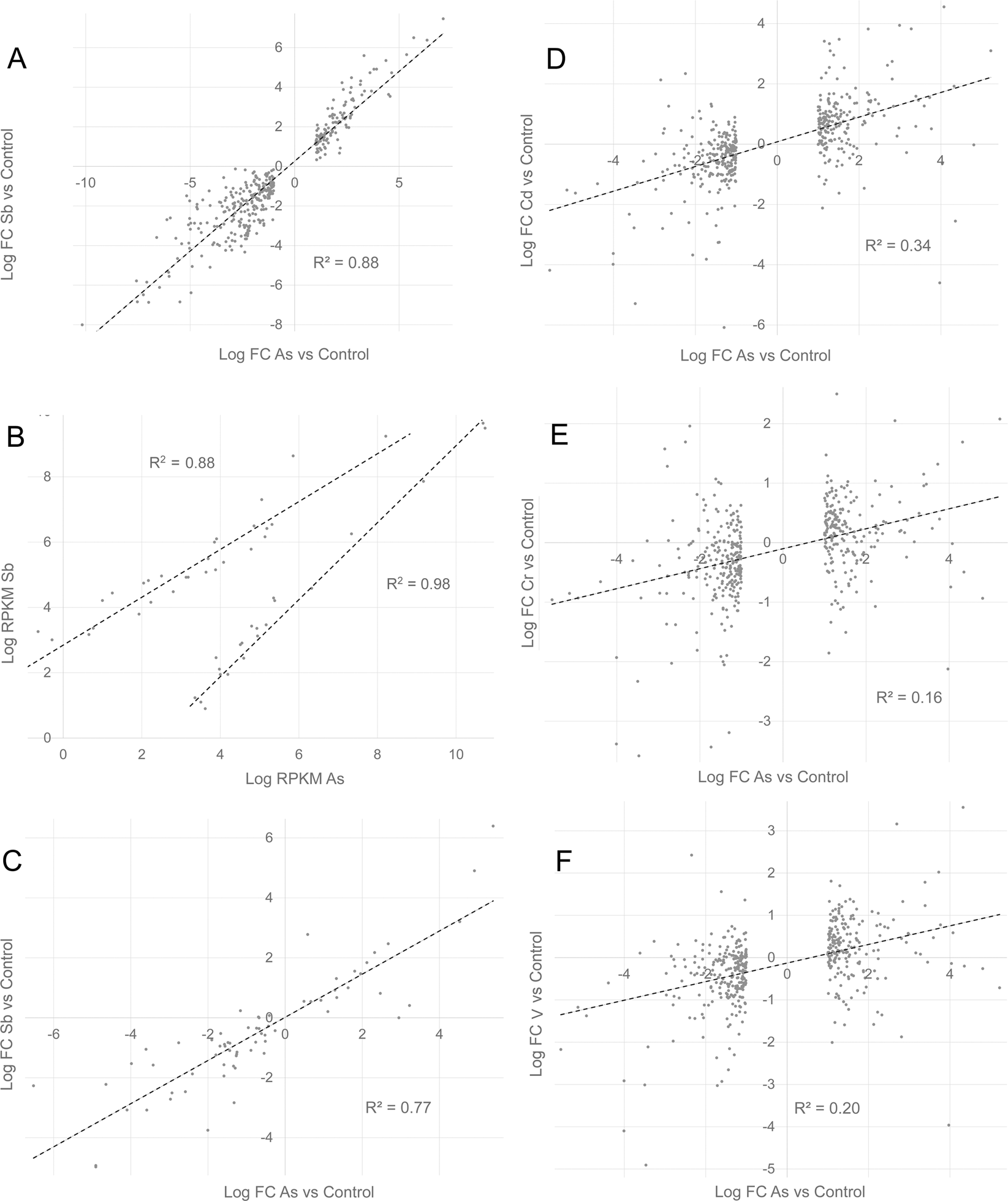

Comparison of effects of treatments on differentially expressed genes and proteins. Log fold change of genes (A) or proteins (C) differentially expressed by arsenite compared to control were plotted against log fold change of the same genes or proteins after antimonite treatment compared to control. Panel B shows genes with significantly different responses to arsenite and antimonite plotted as log RPKM. The upper line shows genes more responsive to antimonite, and the lower line shows genes more responsive to arsenite. Similarly, log fold changes of genes differentially expressed by arsenic compared to control were plotted against log fold changes of the same genes after treatments with cadmium chloride (D), potassium chromate (E) or sodium orthovanadate (F). Data were derived from next generation sequencing (A–C) or DNA microarray (D–F).
