Figure 5 | Scientific Reports

Figure 5

From: Deducing signaling pathways from parallel actions of arsenite and antimonite in human epidermal keratinocytes

Figure 5

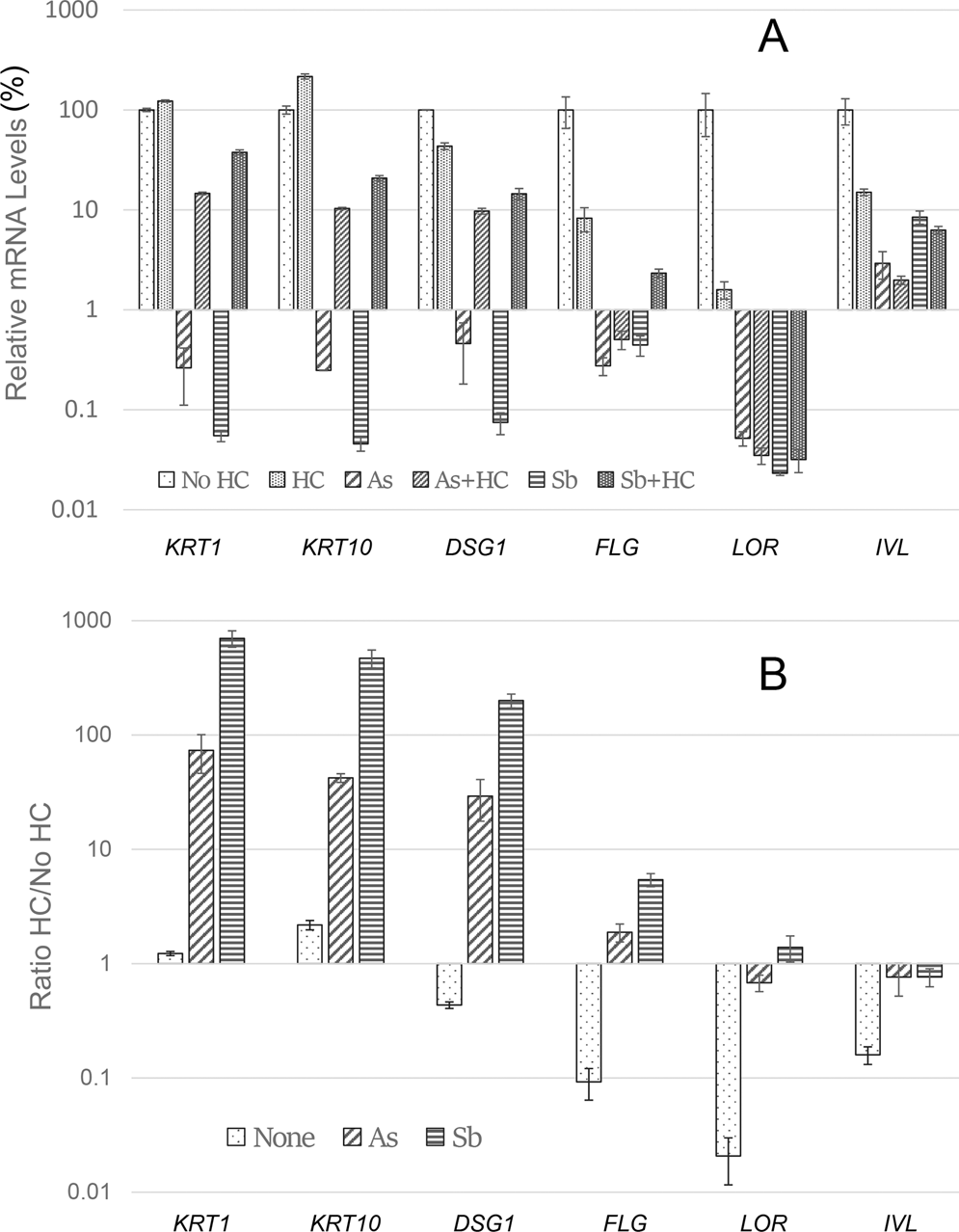

Effect of hydrocortisone (HC) on transcriptional responses to arsenite (As) and antimonite (Sb) treatments. (A) Relative mRNA amounts were determined by qPCR and normalized to amounts in samples without HC, set at 100%. Results are the means and standard deviations of 3 samples. (B) Ratios were calculated for treatments in the presence of hydrocortisone compared to those in the absence of hydrocortisone. Hydrocortisone significantly altered the response at p ≤ 0.05 except for the following: FLG in samples treated with As, and IVL in samples treated with As and Sb.
