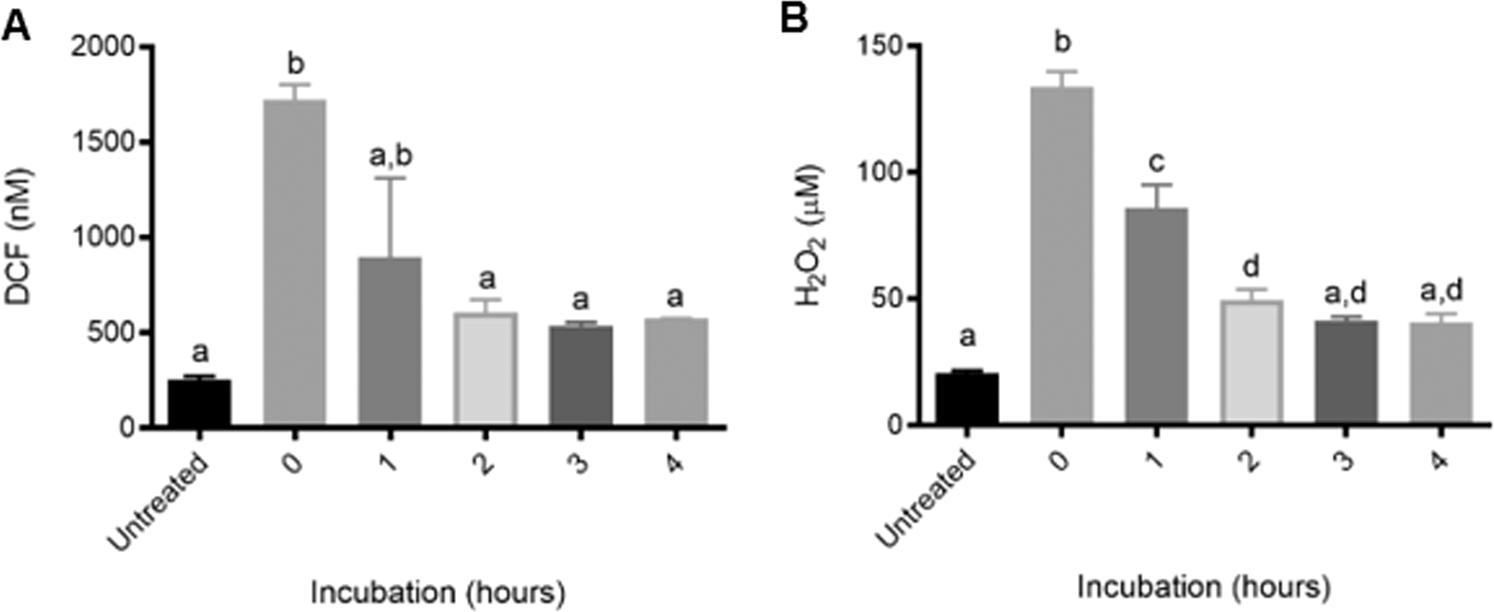

Figure 7
Levels of extracellular ROS/RNS during incubation period. Individual wells of a 24-well plate containing 400 μL of LB broth were exposed to LTP for 3 minutes each. Samples were incubated for 0, 1, 2, 3, and 4 hours before measuring levels of (A) total ROS/RNS via DCF and (B) H2O2. Statistical significance was determined by one-way ANOVA with Tukey’s multiple-comparison test for treated samples. Significance is shown via grouping: a = significantly from other groups marked with b, c, or d; a, b = significantly different from groups marked with c or d; b = significantly different from groups marked by a, c, or d; c = significantly different from groups marked with a, b, or d; d = significantly different from groups marked with a, b, or c; a, d = significantly different from groups marked with b or c, p ≤ 0.05, N = 3.
