Figure 5

From: MiR-23b-3p reduces the proliferation, migration and invasion of cervical cancer cell lines via the reduction of c-Met expression

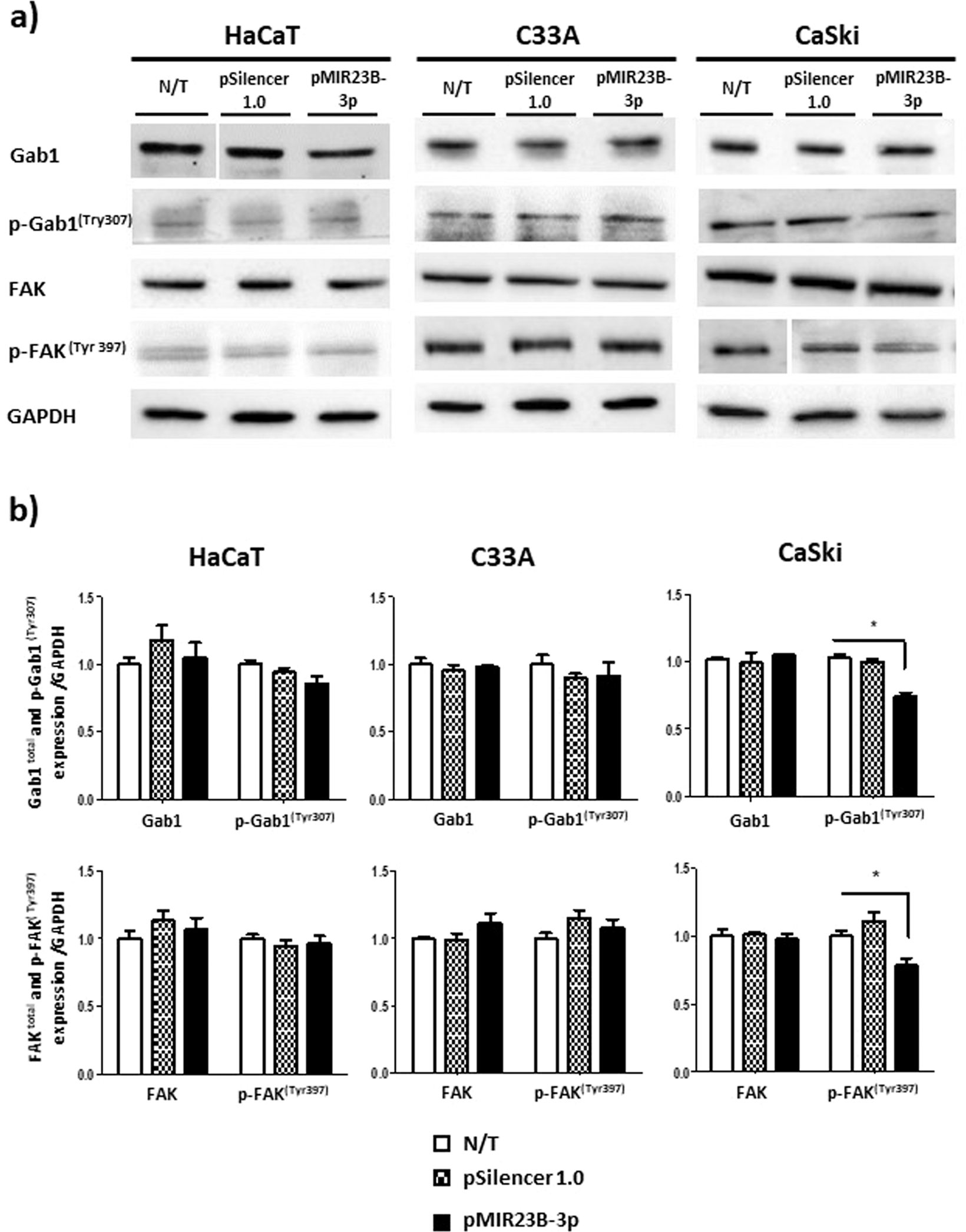

Figure 5

Effect of miR-23b-3p on the activation of Gab1 and Fak. (a) Gab1, Fak, p-Gab1(Tyr307), and p-Fak (Tyr397) levels in HaCaT, C33A and CaSki cells. (b) The overexpression of miR-23b-3p significantly reduces the activation of Gab1 and Fak in CaSki cells. The expression of the proteins was normalized with the GAPDH load control. N/T: non-transfected cells. The data are expressed as averages ± SE. *p < 0.05.
