Figure 6

From: MiR-23b-3p reduces the proliferation, migration and invasion of cervical cancer cell lines via the reduction of c-Met expression

Figure 6

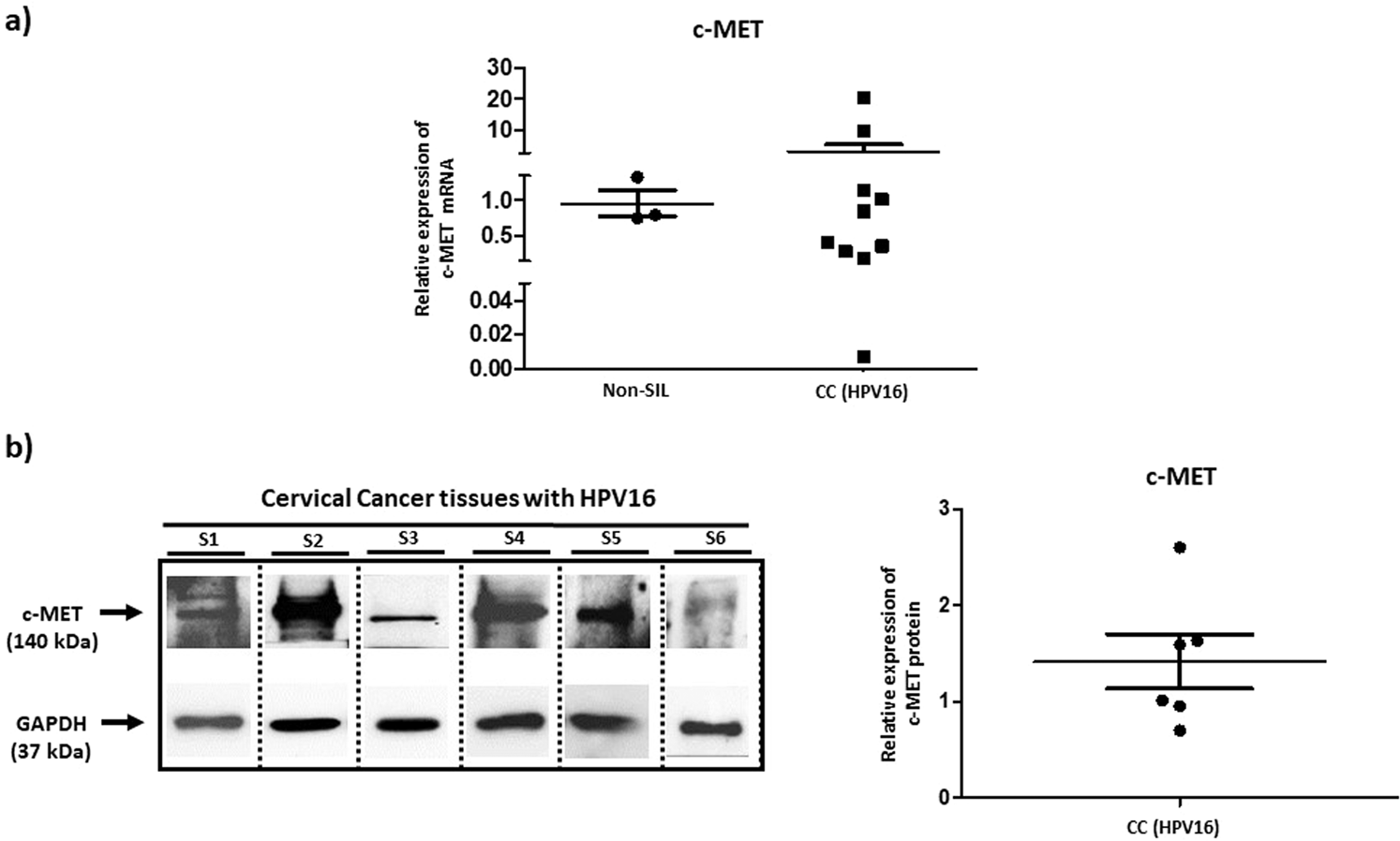

Levels of c-Met expression in CC tissue. (a) Level of relative c-Met expression in cervical scraping samples taken from non-SIL patients and in CC tissues, determined via RT-qPCR. The expression of c-Met mRNA is higher in CC tissues than in non-SIL scraping samples. The levels of c-Met expression were normalized with those from GAPDH and analyzed via the ΔCt method. The comparison among groups was undertaken via the Mann Whitney test. (b) The expression of the c-Met protein was heterogenous in CC tissues. The image from the Western Blot assay was constructed based on bands located in different positions in the same membrane and independent assays. The expression of c-Met was normalized with the expression of GAPDH protein. S: Sample.
