From: Input of terrestrial organic matter linked to deglaciation increased mercury transport to the Svalbard fjords

Figure 1

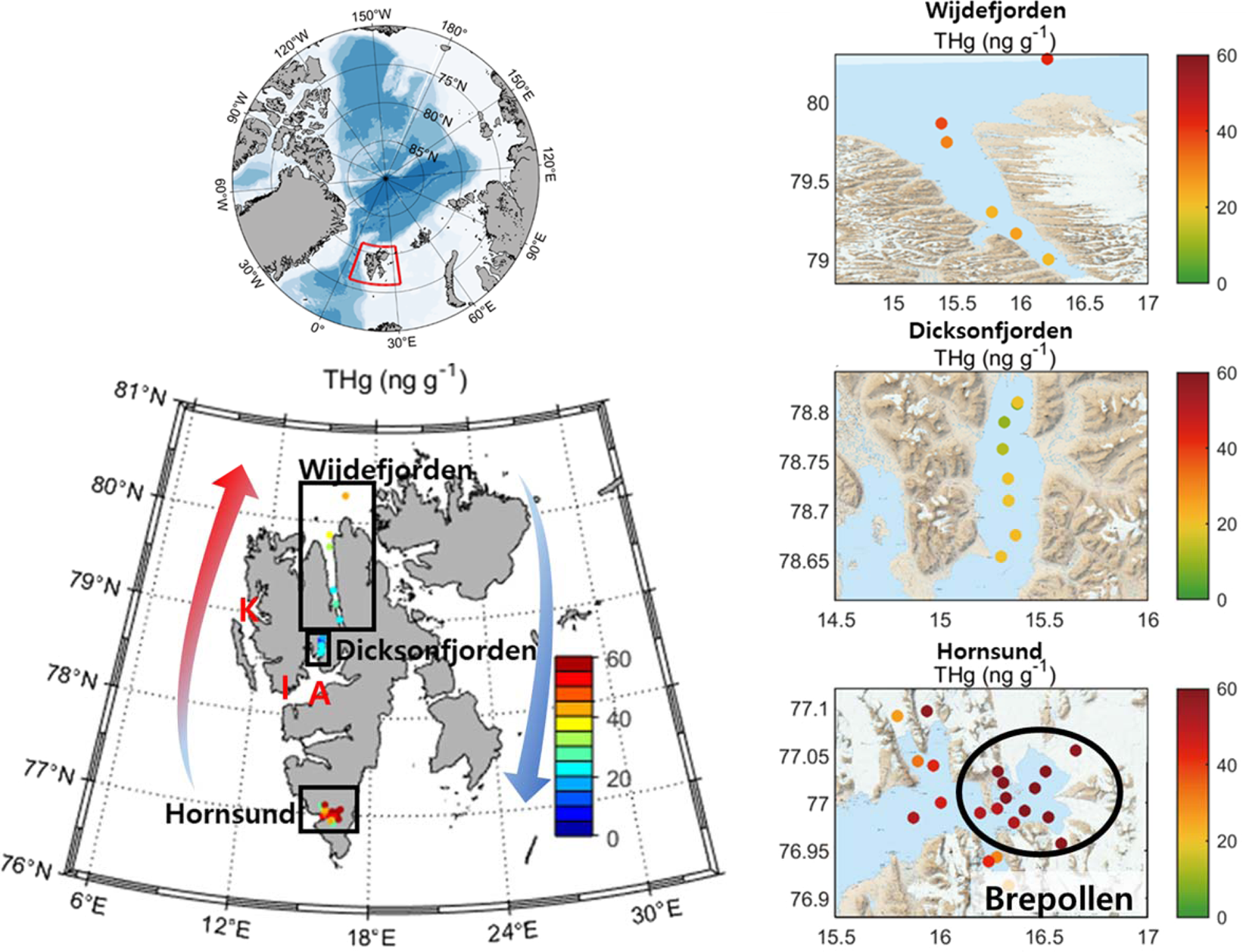

Spatial distributions of absolute THg concentration in the surface sediment of the Wijdefjorden, Dicksonfjorden, and Hornsund of Svalbard archipelago. The K, I, and A mean Kongsfjorden, Isfjorden, and Adventfjord, respectively. Red and blue arrows indicate warm Atlantic and cold Arctic currents, respectively. The map was created using an S100 Raster Data Set70 in Matlab 2018a version71.
