Figure 7 | Scientific Reports

Figure 7

From: Potash fertilizer promotes incipient salinization in groundwater irrigated semi-arid agriculture

Figure 7The alternative text for this image may have been generated using AI.

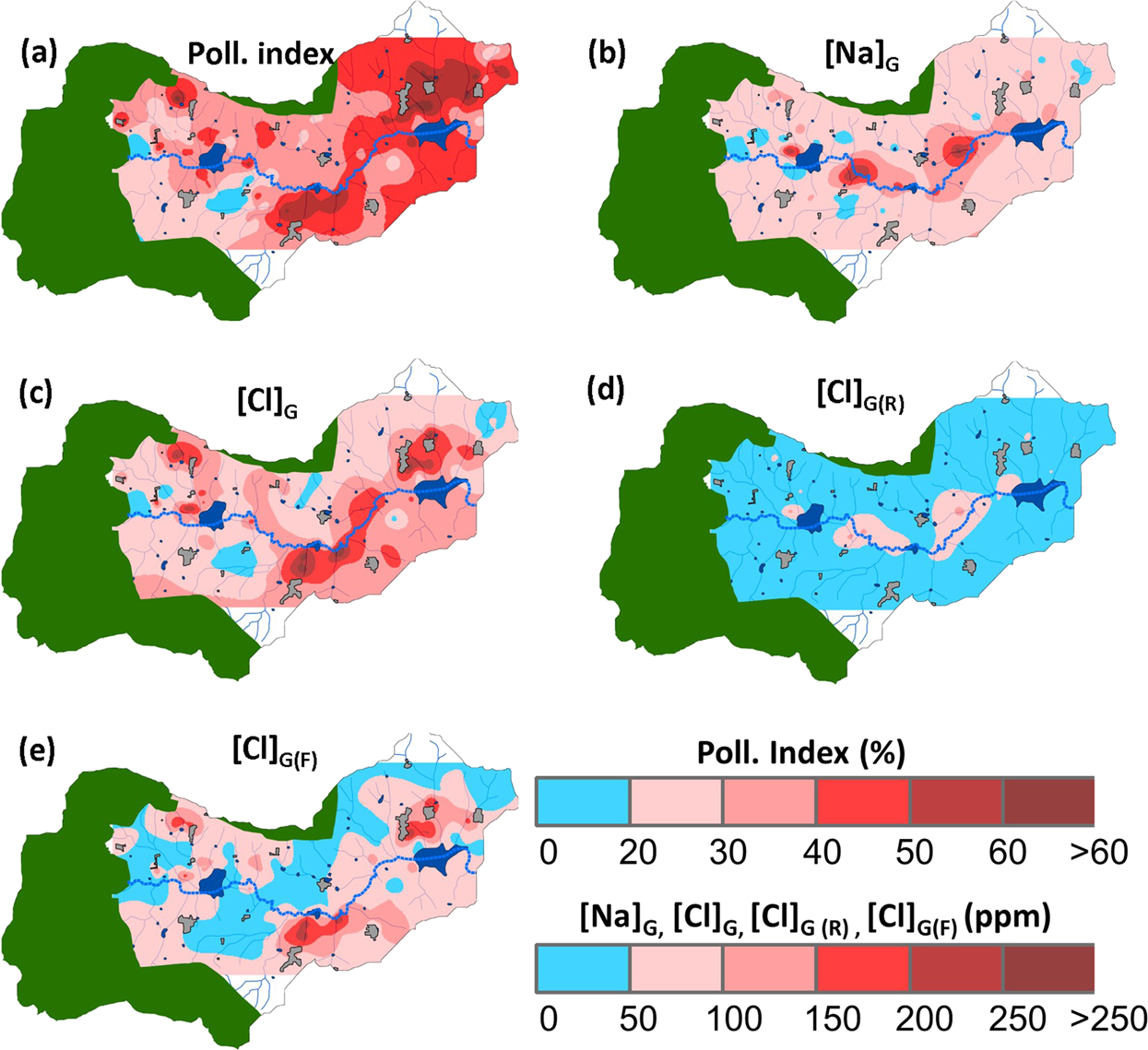

Spatial distribution of groundwater quality in the Berambadi catchment: (a) pollution index, concentration (ppm) in groundwater of (b) Sodium, (c) Chloride, (d) Contribution of rain [Cl]G(R) and (e) fertilizers [Cl]G(F). The green, dark blue and grey colours show forest, ponds and settlements respectively, the dotted blue line shows the main stream (maps were generated using ArcGIS version 10.3.0, https://desktop.arcgis.com/en/).
