Figure 1 | Scientific Reports

Figure 1

From: Disturbance in human gut microbiota networks by parasites and its implications in the incidence of depression

Figure 1

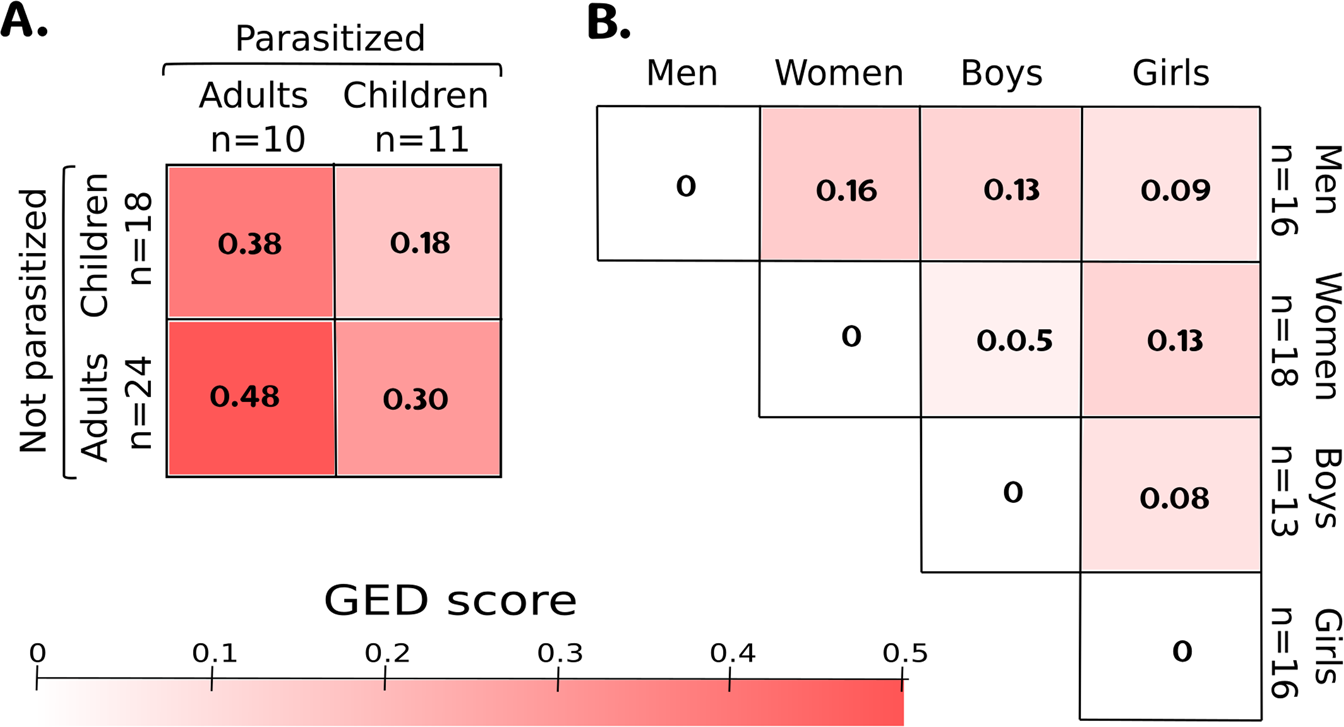

This figure show Graph Edit Distance (GED) comparing different pairs of networks. The scale [0-1] goes from no difference to a total difference. (A) Show the comparisons between Not Parasitized (NP) Vs Parasitized (P) populations divided by Adults and Children. (B) Differences between networks disaggregated by age and gender. The network of the microbiota in Adults is more affected by the presence of parasites showing a 48% difference between treatments. Children are the least affected, differing only by 18%. In all cases, the presence of parasites showed more differences when comparing the magnitudes by treatments than between ages or sexes.
