Figure 6 | Scientific Reports

Figure 6

From: 16S rRNA gene sequencing reveals an altered composition of the gut microbiota in chickens infected with a nephropathogenic infectious bronchitis virus

Figure 6

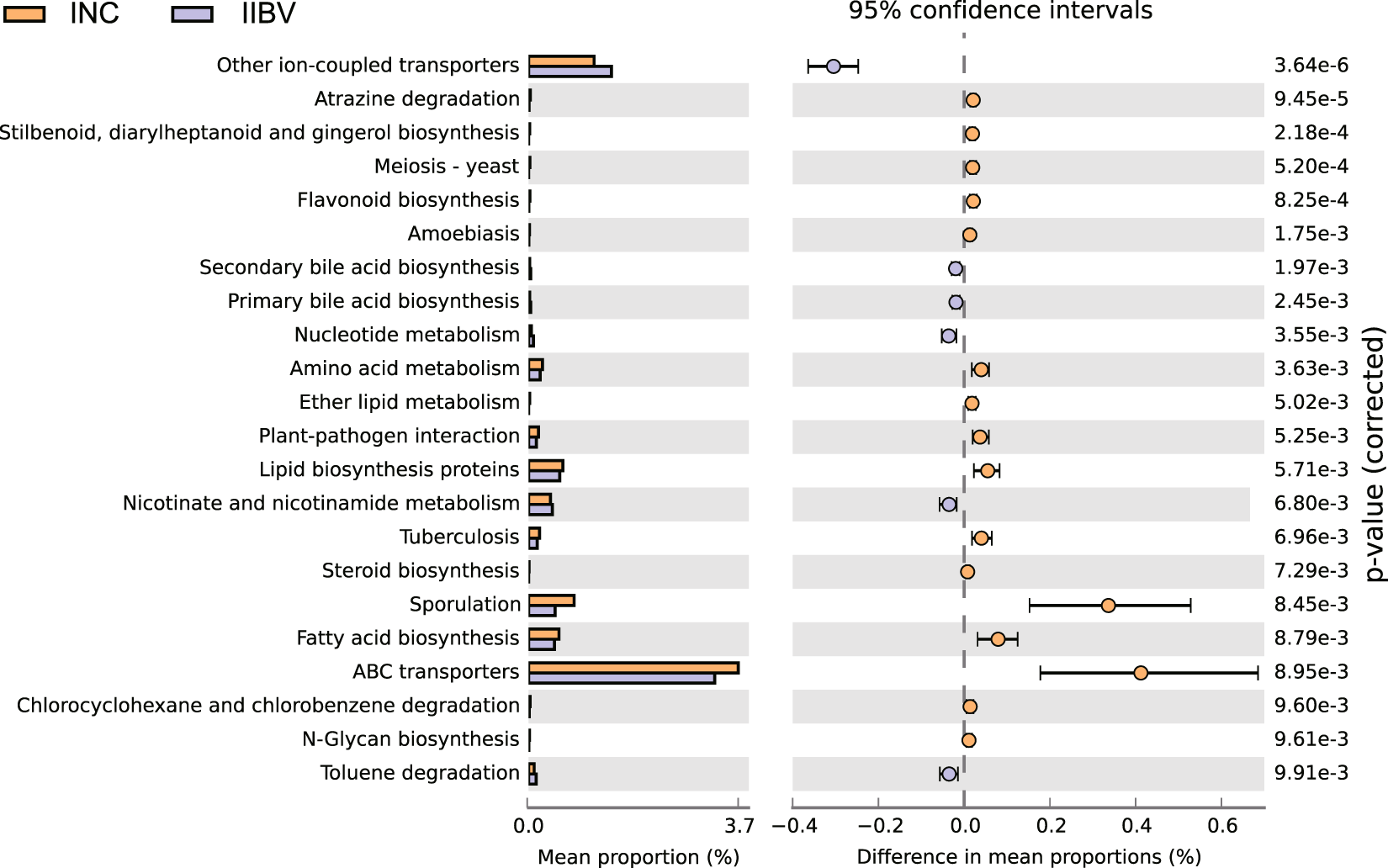

Predicted differential KEGG pathways in the INC and IIBV groups. The PICRUSt-predicted relative abundance of the KEGG pathways (KEGG level 3) was compared between the INC and IIBV groups. The statistical analysis was conducted using White’s nonparametric t-test between the two groups, and only the significant differences in the KEGG pathways (with a P-value < 0.01) are shown.
