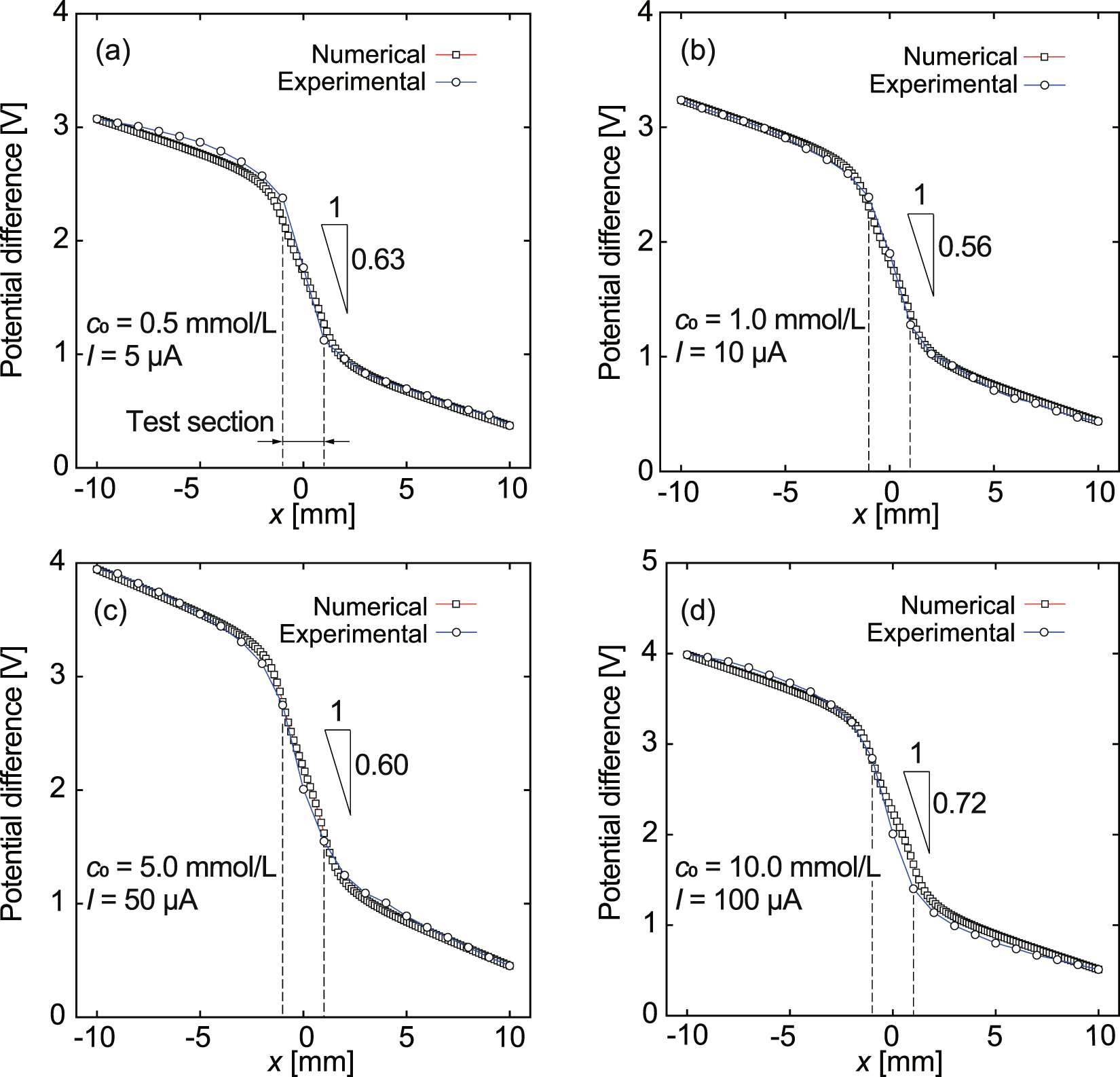

Figure 8
Experimental and numerical results for potential difference as a function of x along the channel: c0 = 5.0 × 10−4 (a), 1.0 × 10−3 (b), 5.0 × 10−3 (c), and 1.0 × 10−2 mol/L (d). The position of the test section is shown by the dashed lines.
