From: Photoinduced damage of AsLOV2 domain is accompanied by increased singlet oxygen production due to flavin dissociation

Figure 3

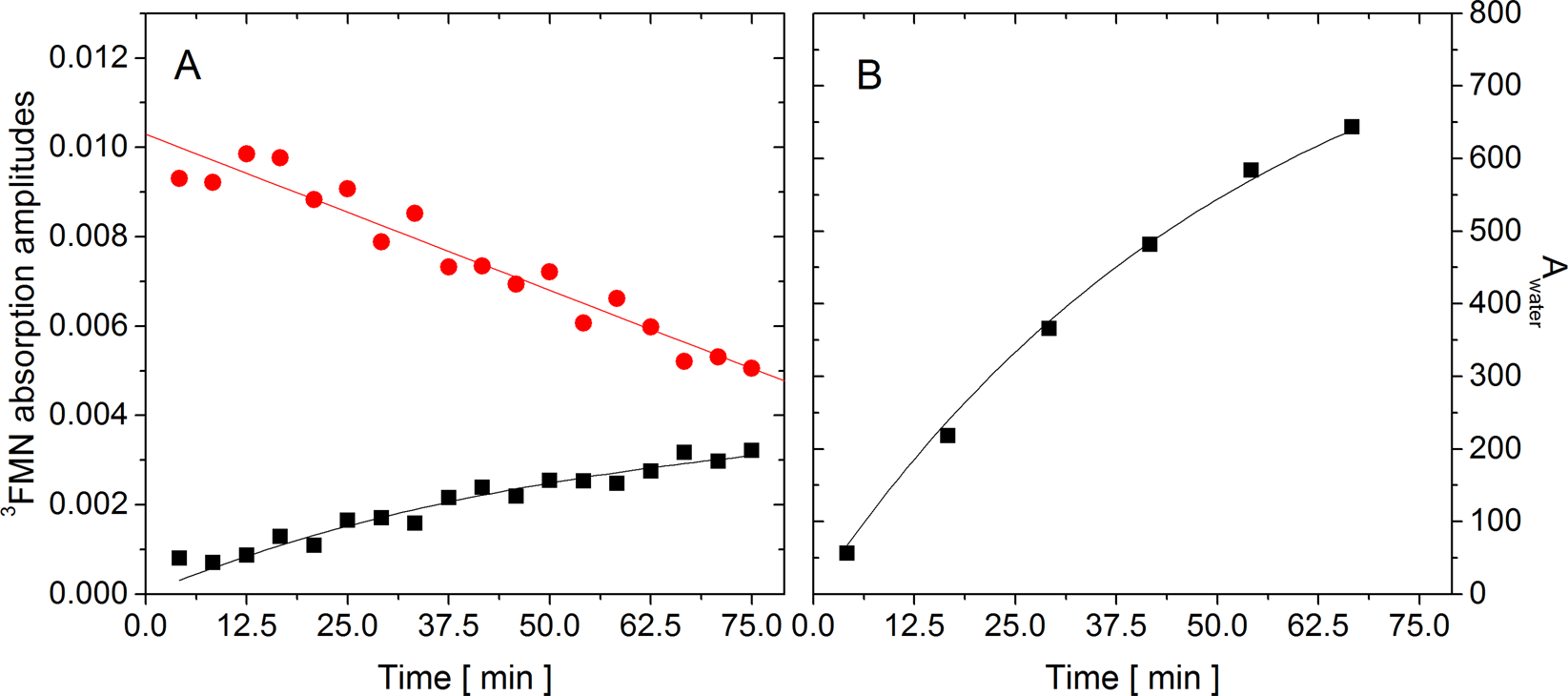

The amplitudes of the exponential 3FMN absorption decays, Absi0 (A) and the amplitudes Ai of the different 3FMN group contributions to the 1O2 phosphorescence signal (see Eq. 1) (B) in intact protein (red circles) and in water (black squares) as a function of the irradiation time of AsLOV2 wt. The solid lines represent the results of the fitting procedures.
