Figure 2 | Scientific Reports

Figure 2

From: Preoperative Stereotactic Body Radiotherapy to Portal Vein Tumour Thrombus in Hepatocellular Carcinoma: Clinical and Pathological Analysis

Figure 2

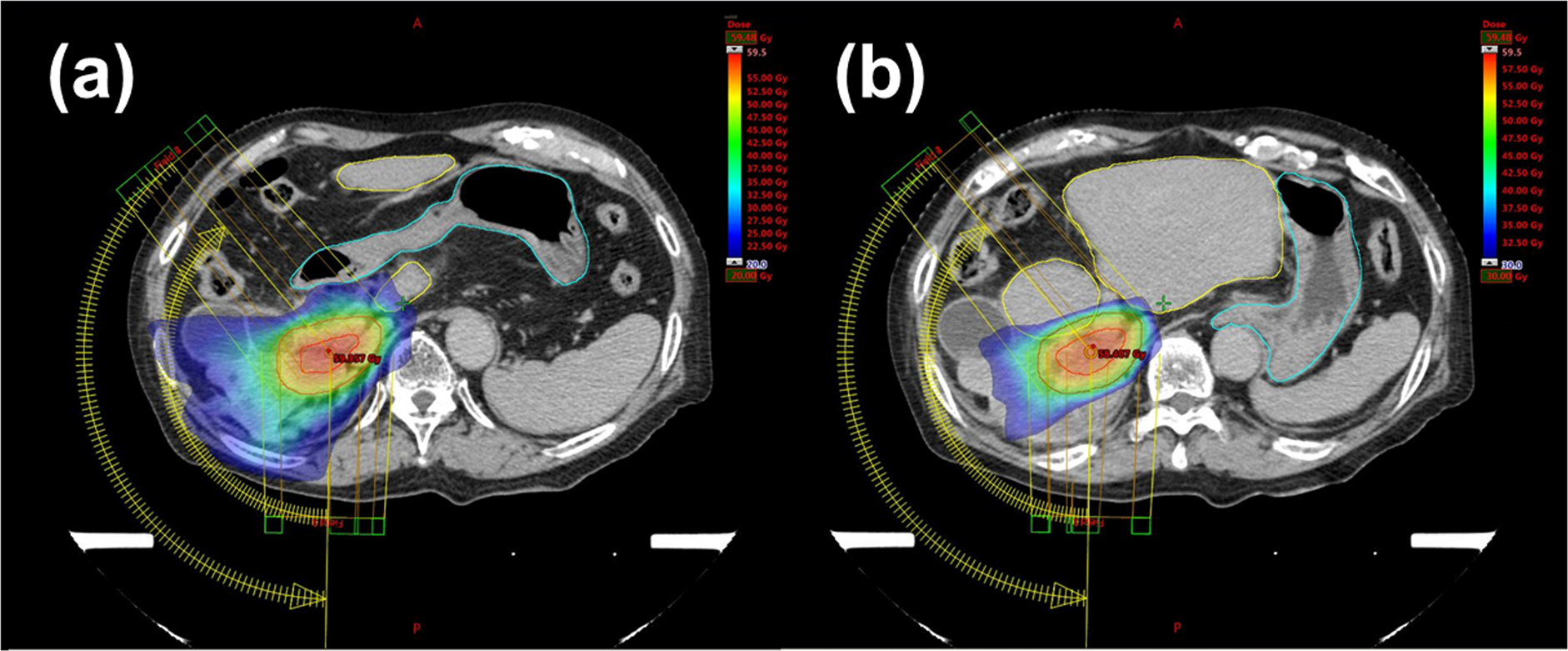

Example of a treatment plan (patient F) showing the colour wash dose distribution; (a) 20 Gy and above, and (b) 30 Gy and above. Radiation doses to the stomach and duodenum (marked by a light blue line) were less than 20 Gy; irradiation beyond the resection line (remnant liver: marked by a yellow line) was also reduced to less than 30 Gy.
