From: APOE4 is Associated with Differential Regional Vulnerability to Bioenergetic Deficits in Aged APOE Mice

Figure 6The alternative text for this image may have been generated using AI.

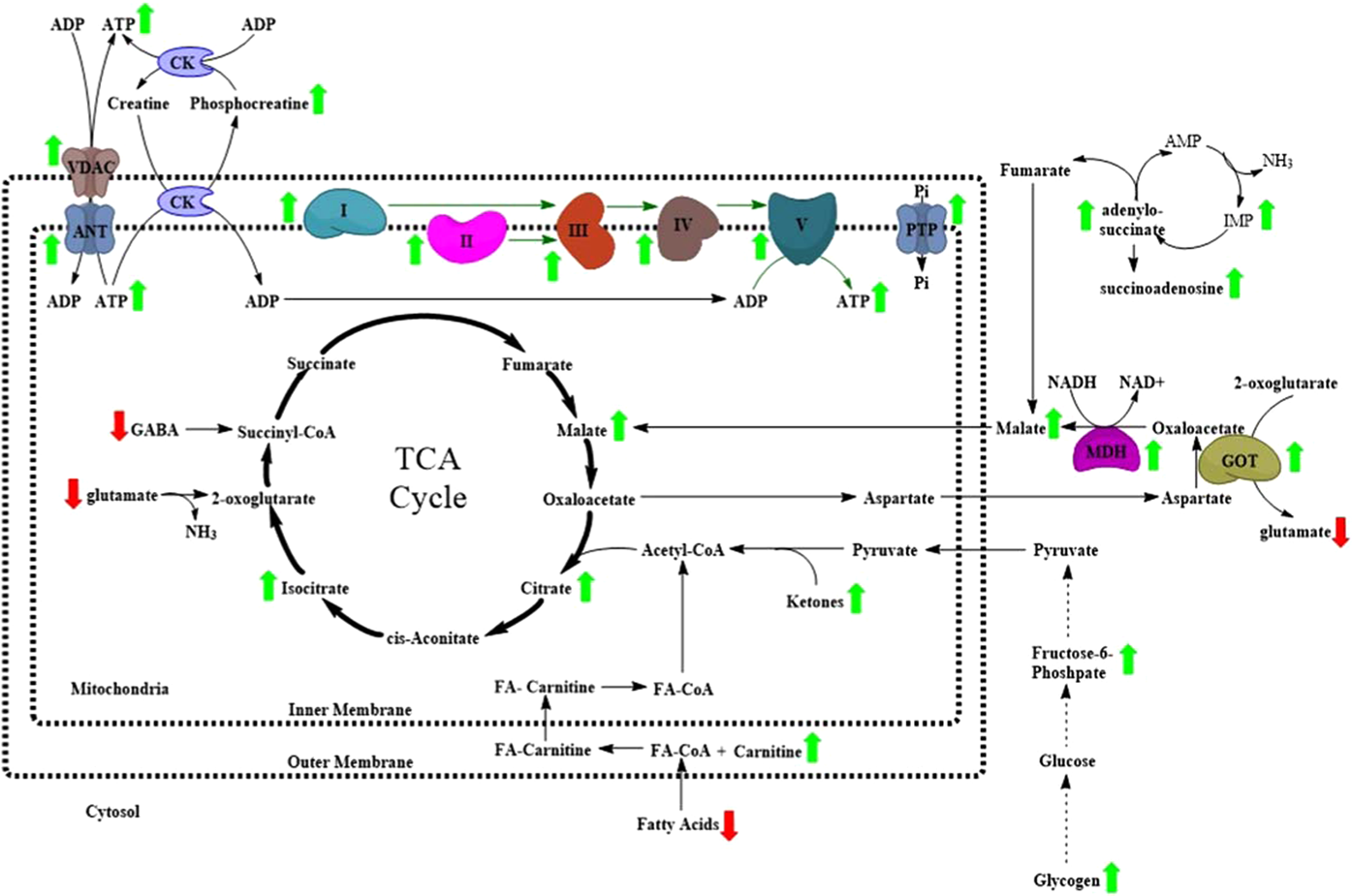

Identification of differentially expressed bioenergetic genes and metabolites in the EC of aged APOE4 mice. A schematic of the bioenergetics genes and metabolites that have been predicted to be altered by differential APOE isoform expression in this study, as depicted in a simplified manner with respect to their relationships to each other and their location inside or outside of mitochondria. Genes or metabolites that were putatively identified as increased in aged male APOE4 mice, as compared to aged male APOE3 mice, are marked with a green arrow, and those that are decreased are marked with a red arrow.
