Figure 10

From: TmRelish is required for regulating the antimicrobial responses to Escherichia coli and Staphylococcus aureus in Tenebrio molitor

Figure 10

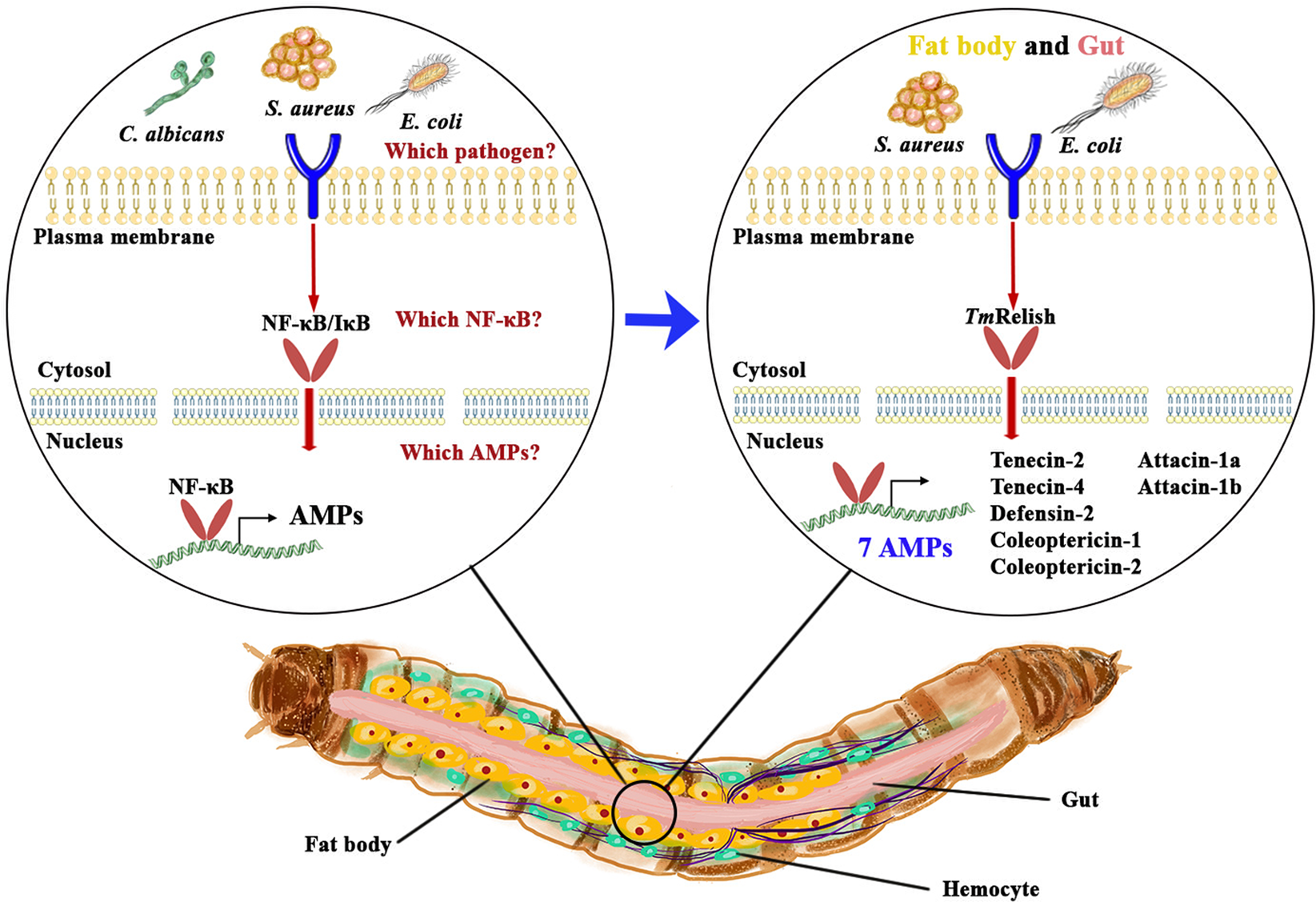

A schematic representation of the humoral immunity pathway positively regulated by Relish in the T. molitor fat body and gut, upon Escherichia coli and Staphylococcus aureus infections, but not Candida albicans infection. Seven AMPs were downregulated in the TmRelish knockdown group, indicating that Relish is required for survival of the host.
