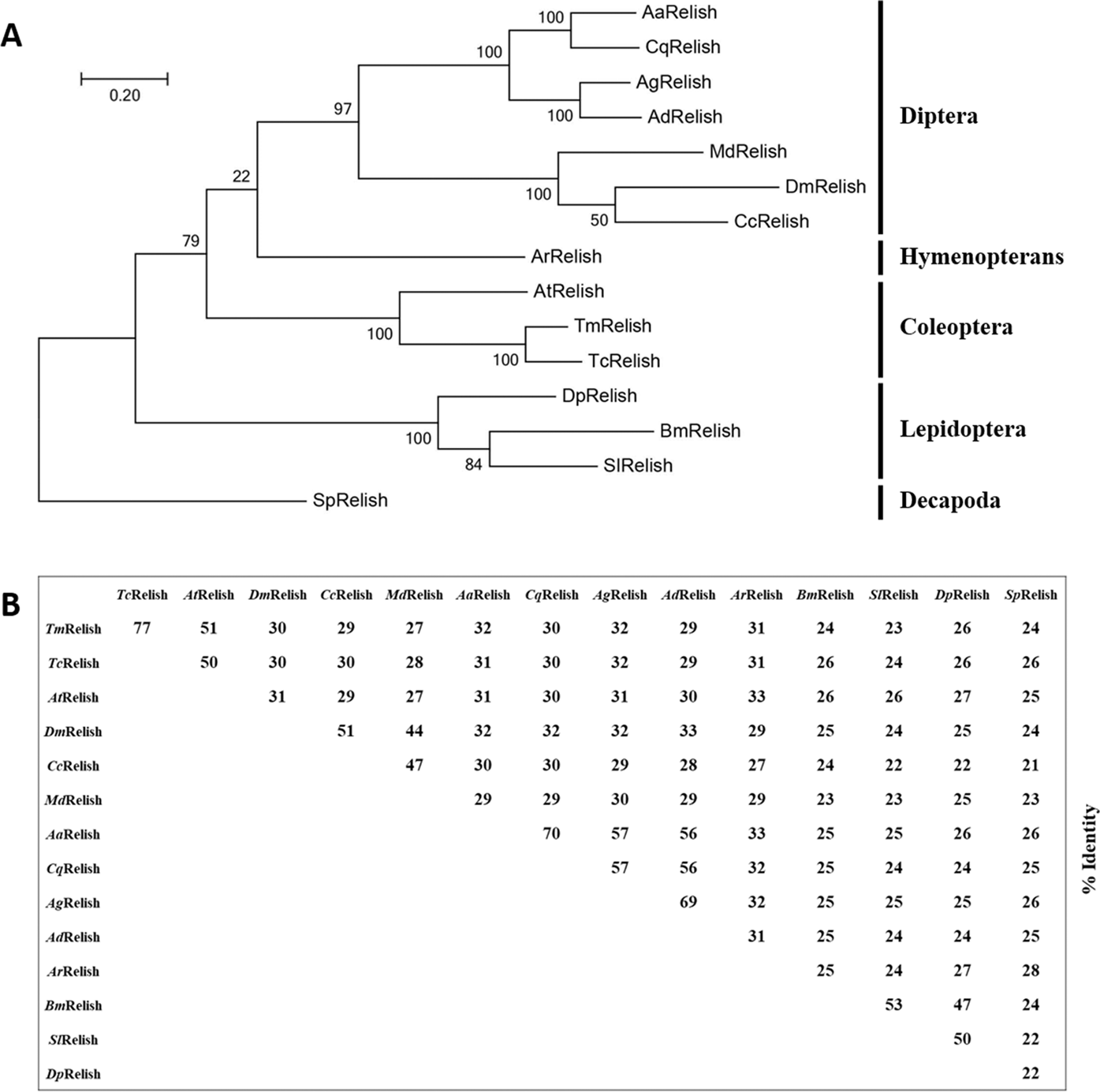

Phylogenetic tree (A) and percentage identity analysis (B) of the TmRelish and Relish protein sequences of representative insect species. Protein sequences were retrieved from NCBI, as described previously. The phylogenetic tree was constructed using the maximum likelihood method in MEGA7. The percentage of trees in which specific taxa clustered together is given by each branch. Bootstrap analysis values for 1,000 replicates are shown.
