Figure 2
From: Parapapillary atrophy and changes in the optic nerve head and posterior pole in high myopia

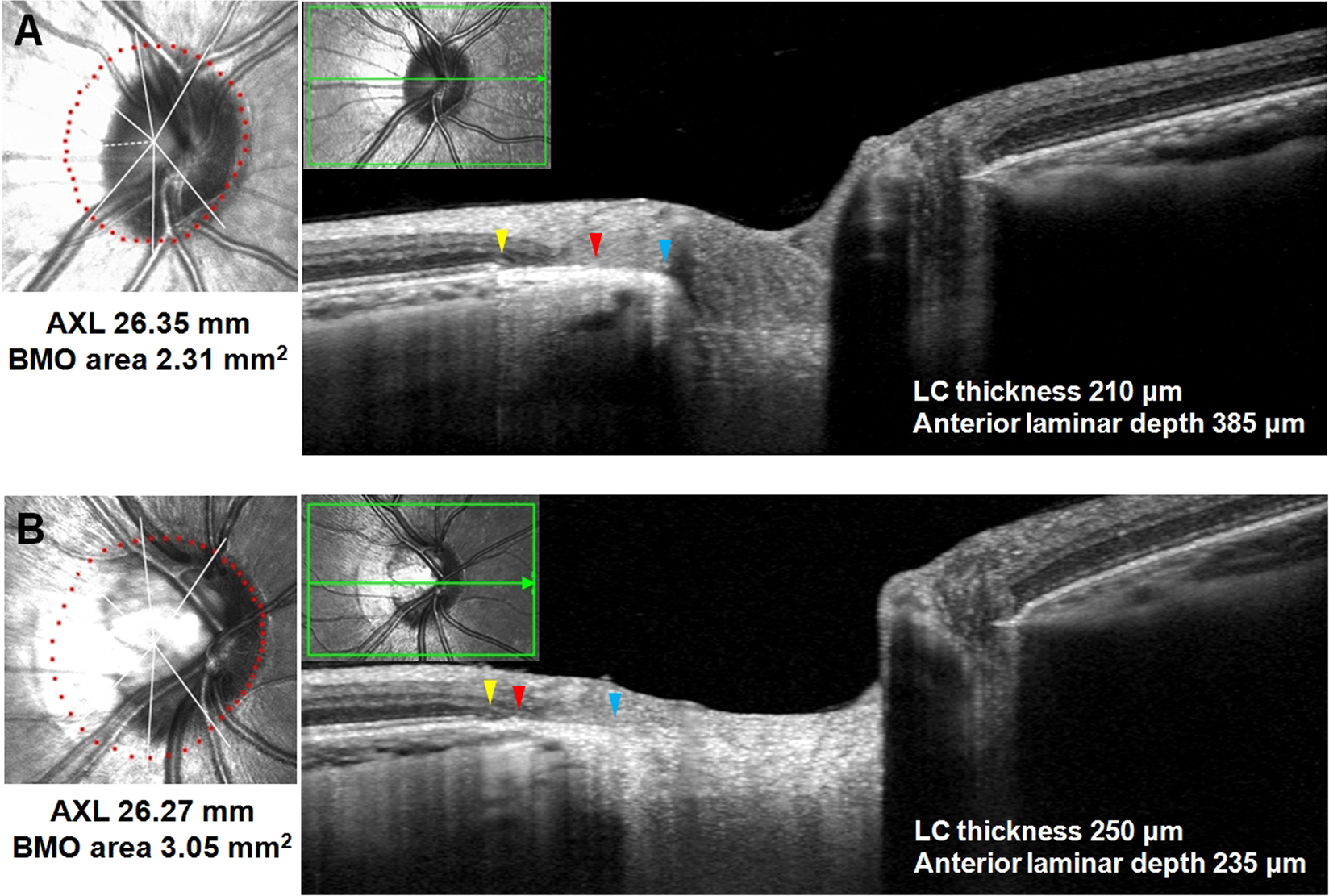

Images from myopic eyes with similar axial length and different microstructure of β-PPA. (A) A myopic eye of 29-year-old man with axial length of 26.35 mm. The width of PPA+BM and PPA−BM were 462 μm and 367 μm, respectively. The BMO area was 2.31 mm2. The EDI OCT image demonstrating a thinner LC and deeper anterior lamina surface compared with those from B. (B) A myopic eye 25-year-old man with axial length of 26.27 mm. The width of PPA+BM and PPA−BM were 157 μm and 485 μm, respectively. The BMO area was 3.05 mm2. The EDI OCT image demonstrating thicker LC thickness and shallower anterior lamina depth compared with those from A.
