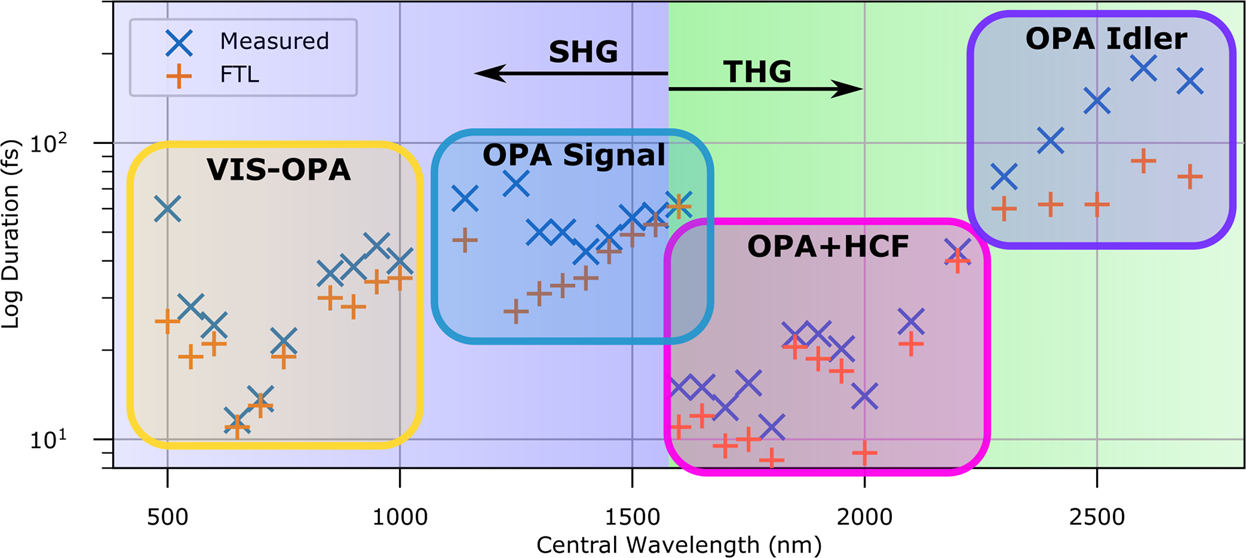

Figure 2
From: Measurement of 10 fs pulses across the entire Visible to Near-Infrared Spectral Range
Pulse durations measured across the entire VIS-NIR wavelength range. Blue exes are best achieved pulse duration while orange crosses are the transform limited FWHM. The FROG error is below 0.003 for all SHG measurements and 0.005 for all THG measurements.
