Figure 1

From: Self-regulation versus social influence for promoting cooperation on networks

Figure 1

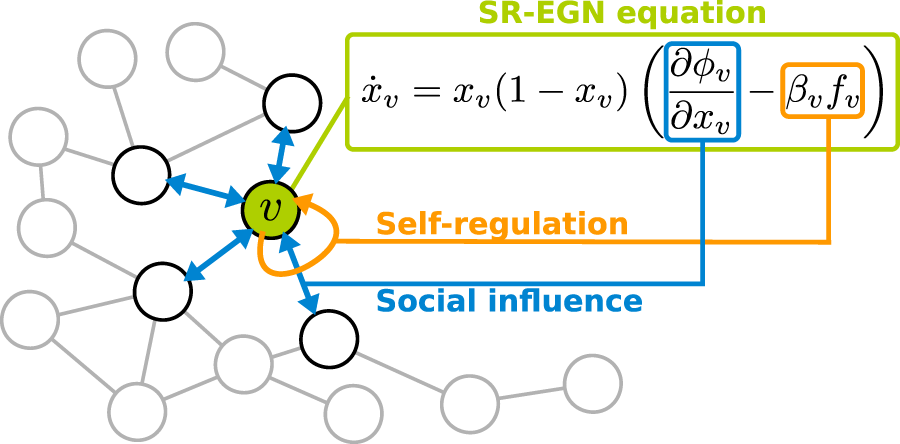

SR-EGN equation. Strategy dynamics of player \(v\) (green node) is ruled by the SR-EGN equation (green box). It includes two terms: the social influence term \(\partial {\phi }_{v}/\partial {x}_{v}\) (blue box) and the self-regulation term \({\beta }_{v}\,{f}_{v}\) (orange box). The arrows represent the interactions of player \(v\) with neighbors (blue) and with himself (orange).
