Figure 4

From: System for the remote control and imaging of MW fields for spin manipulation in NV centers in diamond

Figure 4

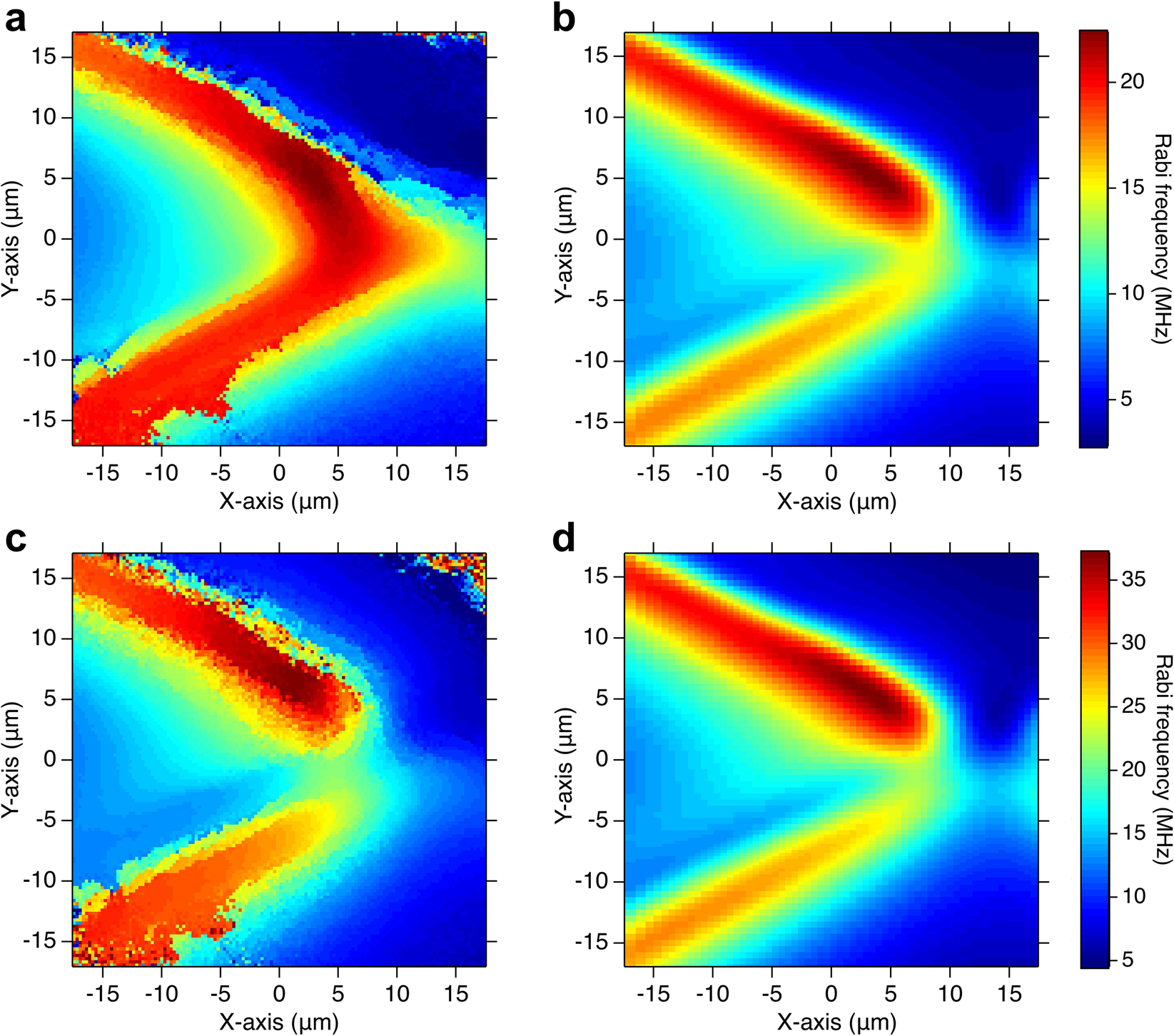

Comparison between the measured Rabi frequency distributions of the crossed-wire resonator at a MW power of 29.3 dBm and the corresponding FDTD simulations. The single points of the measurements are calculated by binning 4 × 4 pixels. (a) MW imaging at a frequency of 3.010 GHz (\(\left|0\right\rangle \) → \(\left|+1\right\rangle \)) and its simulated result in (b). (c) MW imaging at a frequency of 2.730 GHz (\(\left|0\right\rangle \) → \(\left|-1\right\rangle \)) and its simulated result in (d). The MW field distribution was calculated on the plane at a distance of 3.0 μm from the surface of the resonator.
