From: Evaluation of bile salt hydrolase inhibitor efficacy for modulating host bile profile and physiology using a chicken model system

Figure 3

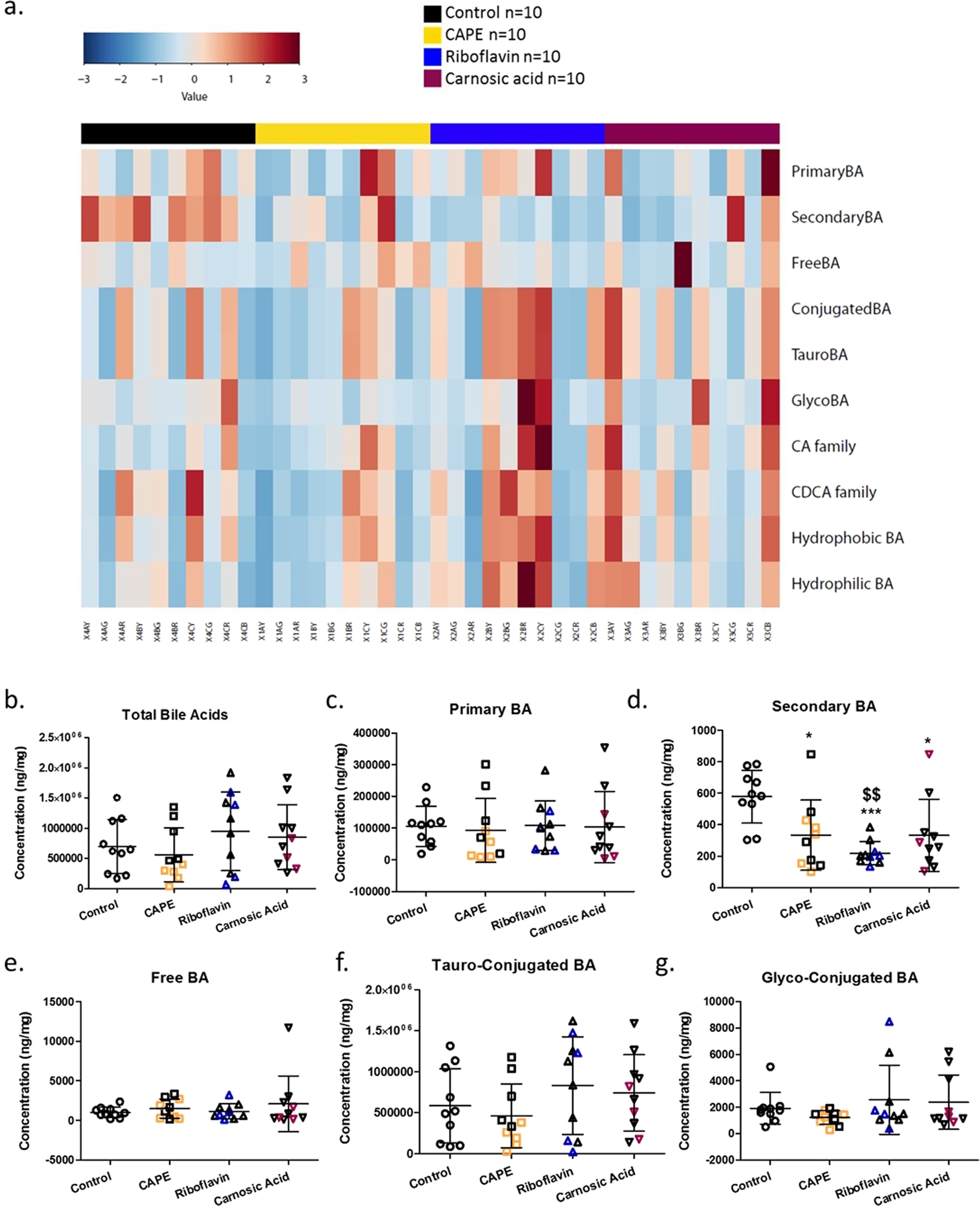

Assessment of the effects of BSH inhibitors on ileal bile acids classifications. (a) Heatplot showing relative representation of bile acids according to their classification/family for individual animals following respective treatments. Significantly altered (b–g) bile acid family representations. Coloured subjects represent responder (RS) animals with black subjects classified as non-responders (NRS).
