From: Hypoplasia of cerebellar afferent networks in Down syndrome revealed by DTI-driven tensor based morphometry

Figure 2

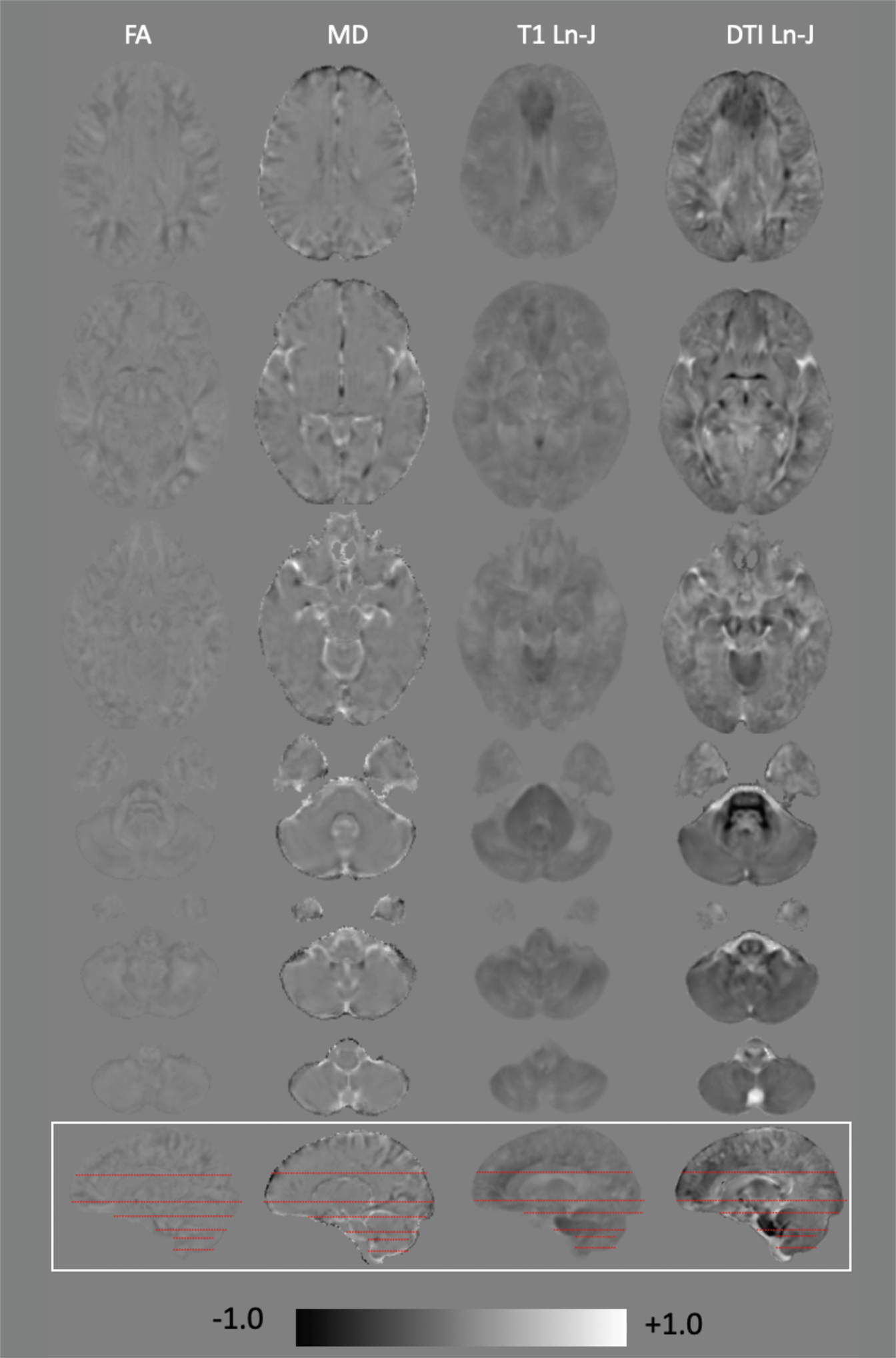

Magnitude difference for DS-TD group for FA, MD, T1-TBM and DTBM. The gray level in the background correspond to zero. Gray levels darker than the background indicate negative values (DS < TD) and gray levels brighter than background indicate positive values (DS > TD). All values are scaled from -1 (black) to +1 (white). Ln-J and FA values are dimensionless, MD values are in units of 10-3 mm2/s.
