Figure 2 | Scientific Reports

Figure 2

From: Resting-state EEG activity predicts frontoparietal network reconfiguration and improved attentional performance

Figure 2

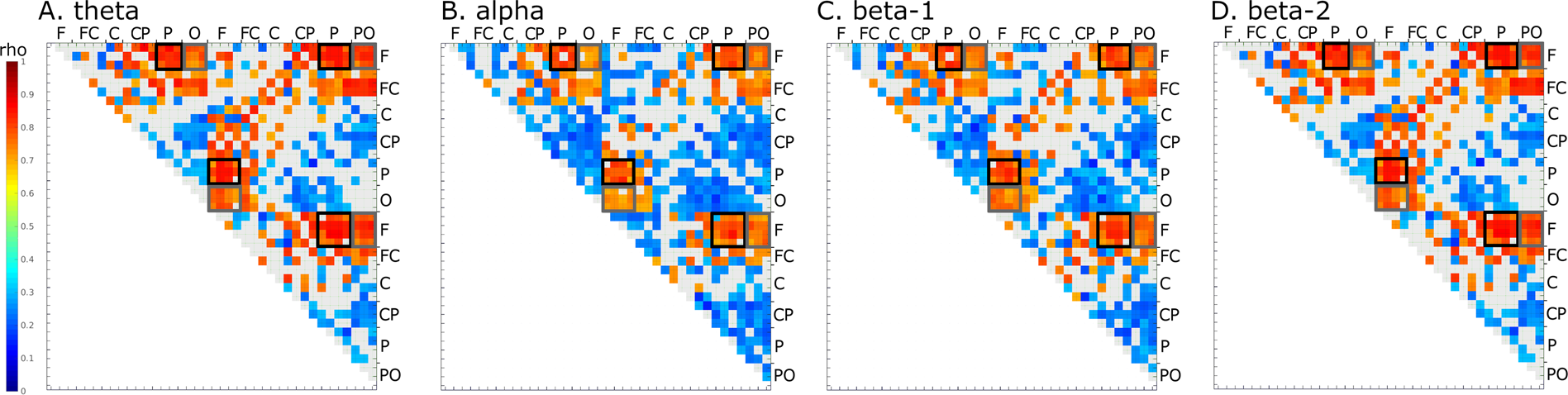

Significant correlations between gB2rest and phase-locking values (PLVs) of the resting-state measured before test session in: (A) theta, (B) alpha, (C) beta-1 and (D) beta-2 EEG bands. PLVs were calculated for averaged one second epoch. Shades of red and blue denote significant FDR-corrected correlation strength (color bar to the left) between the two signals recorded from electrodes indicated next to the box outlines. Light gray squares denote lack of significance. Gray outlines denote PLVs between frontal and occipital electrode sites; black outlines denote PLVs between frontal and parietal sites.
