From: Physical assessments of termites (Termitidae) under 2.45 GHz microwave irradiation

Figure 1

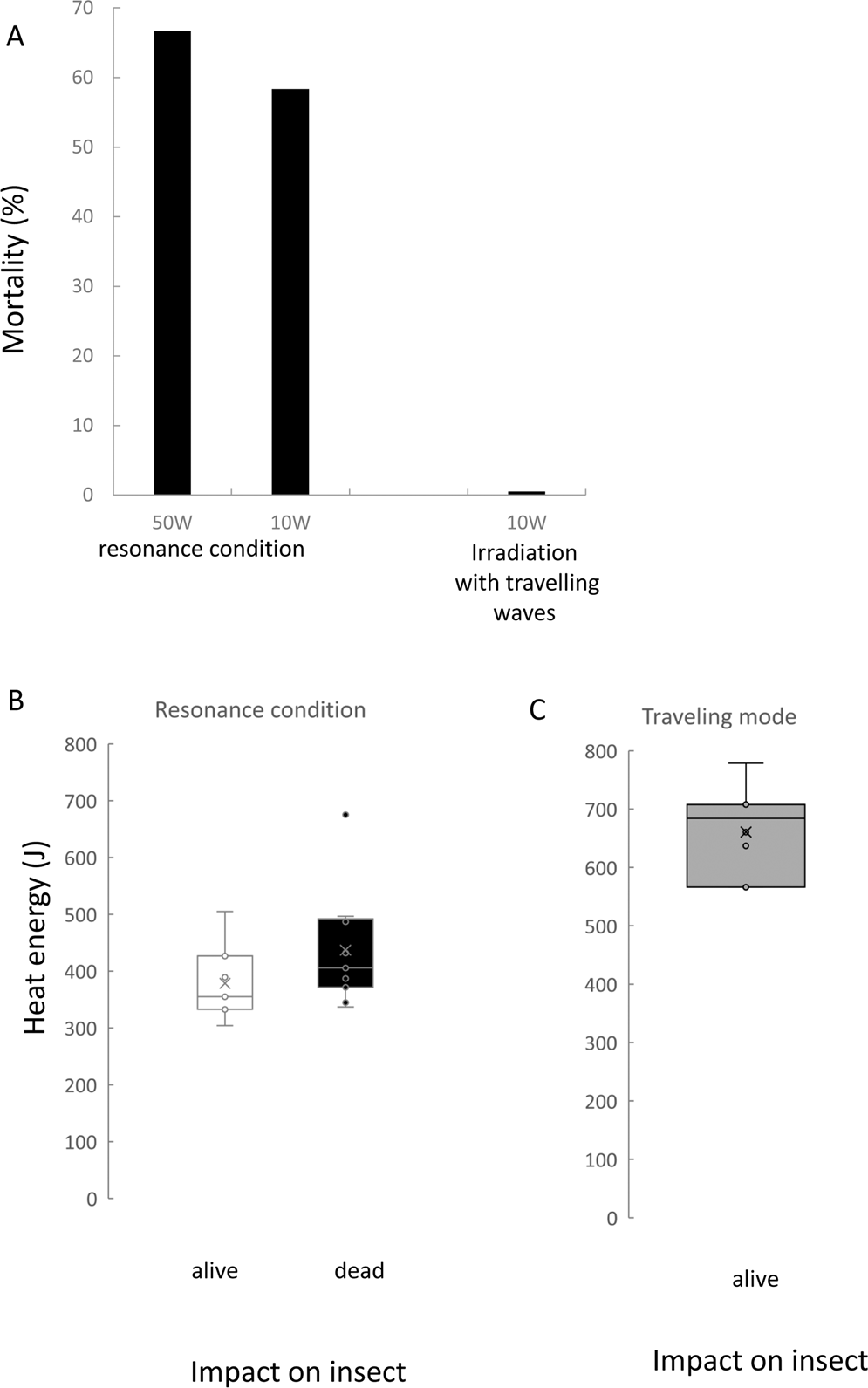

Patterns of microwave energy transduction in the insect body under two irradiation conditions. (A) Mortality of the termite under each microwave irradiation condition. (B) Energy absorption of an insect body under the irradiation with a resonating wave. (C) Energy absorption of 30 insects (80.5 mg) under the irradiation with traveling waves. Vertical bars represent standard errors (SE).
