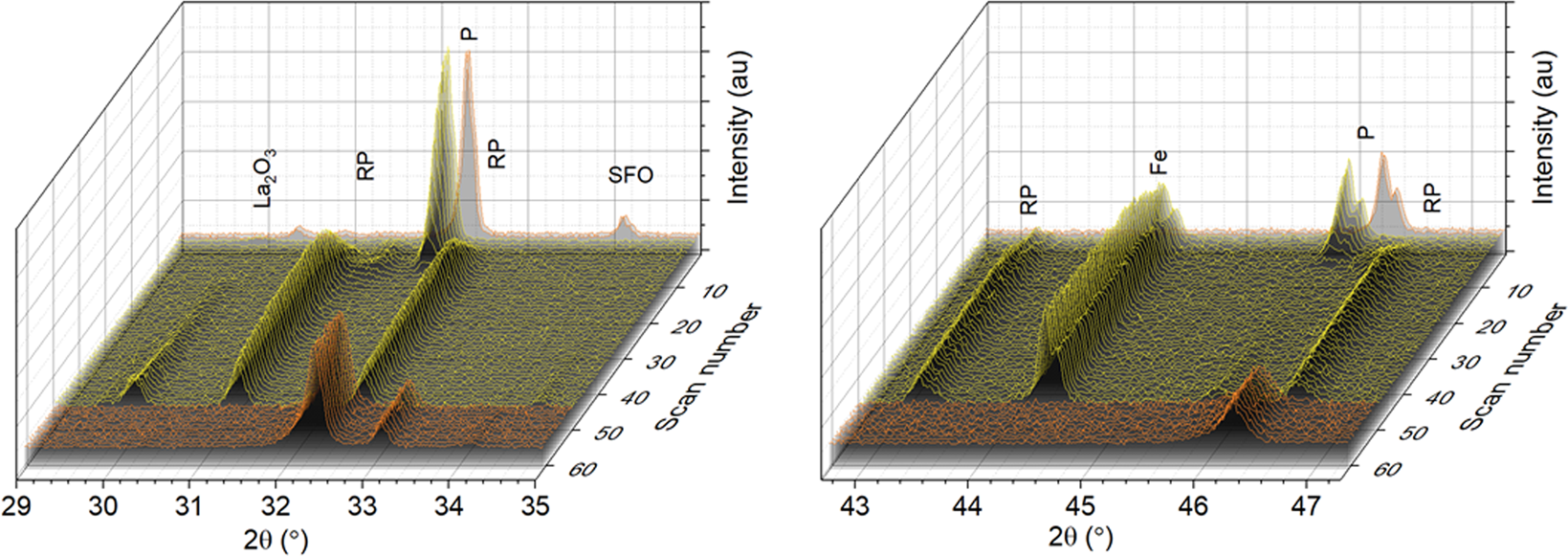

Figure 2
Composite phase analysis by in situ XRD during one redox cycle. The experiment was carried out at 850 °C. The sample was initially held in air for one 60 min (scans 1,2), then the environment was switched to H2 for 650 min (scans 3 to 52), and then back to air for an additional 800 min (scans 53 to 64). The time elapsed to scan from 25° to 50° 2-theta was varied between 7 and 13 minutes (see the experimental section for details).
