From: Nanosized Alumina Particle and Proteasome Inhibitor Bortezomib Prevented inflammation and Osteolysis Induced by Titanium Particle via Autophagy and NF-κB Signaling

Figure 6

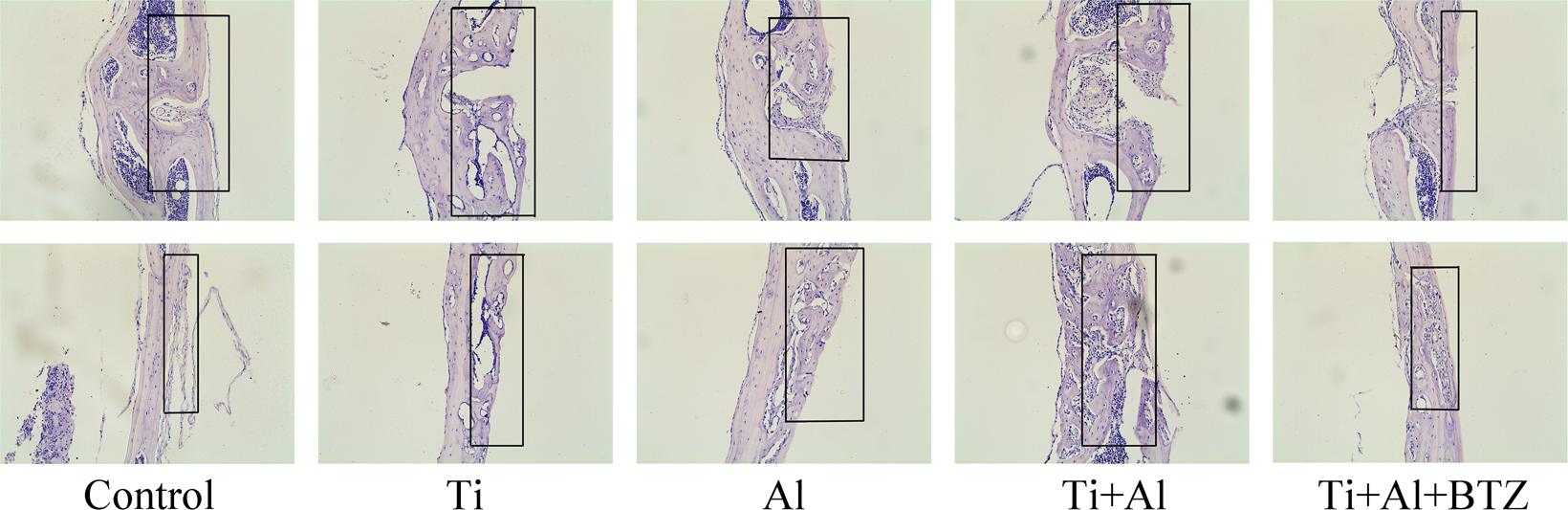

Histological staining of calvaria sections. Representative hematoxylin and eosin (H&E) stained histological slices. Severe calvarial destruction was found in Ti particles treated group. Al-NPs and BTZ significantly reduced the Ti particle-induced calvarial destruction. Rectangle frame indicated the surgical areas which the bone resorption was induce in the experimental groups. (Bar = 200 μm).
