Figure 6

From: The impacts of intrauterine Bisphenol A exposure on pregnancy and expression of miRNAs related to heart development and diseases in animal model

Figure 6

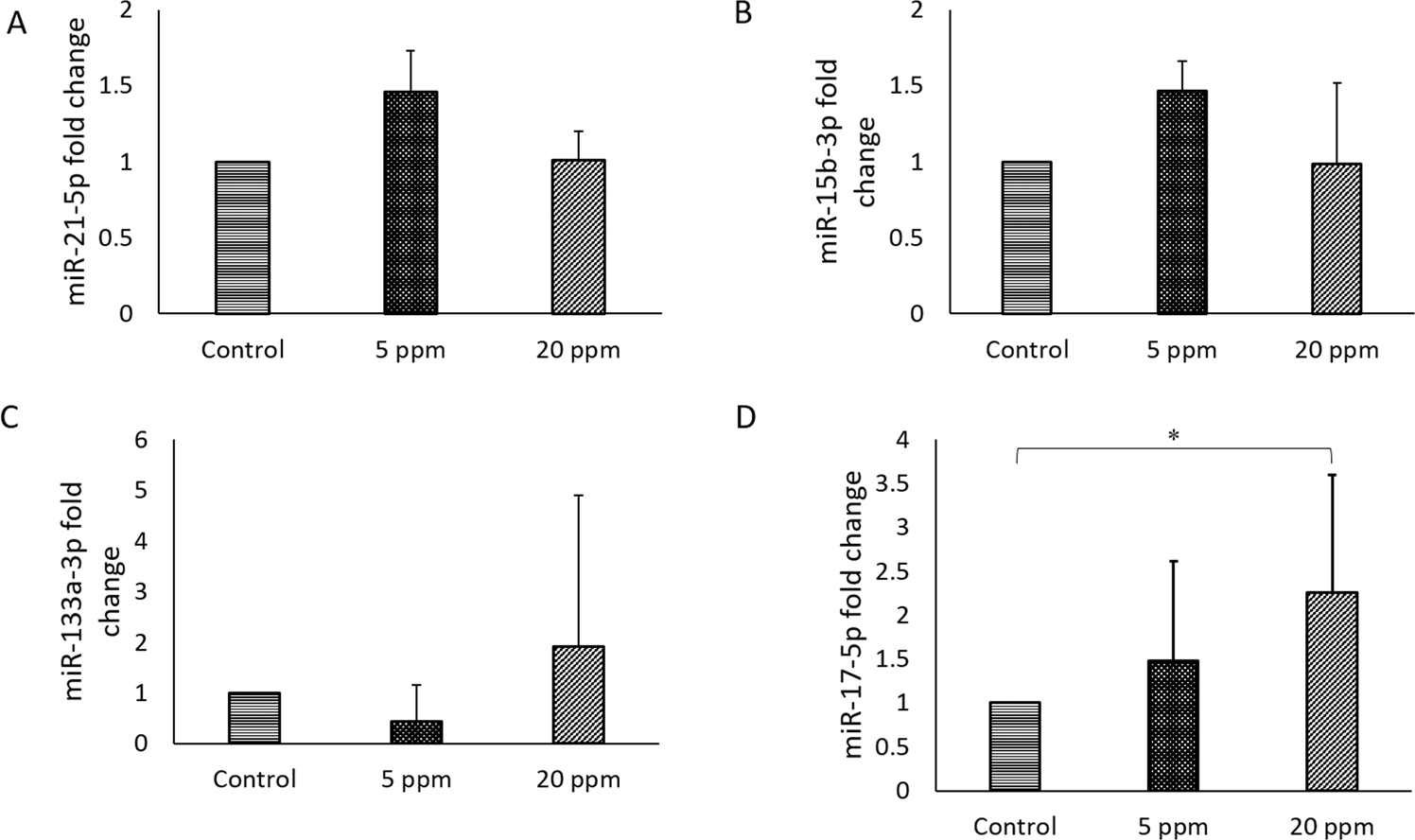

miR-17-5p was upregulated in foetuses heart of BPA-exposed pregnant rats. miRNA expression of (A) miR-21-5p (B) miR-15b-3p (C) miR-133a-3p (D) miR-17-5p were measured in the heart of foetuses of control and BPA-exposed pregnant rats. All the miRNA have been reported involved in cardiac development. Data are expressed as means. (n = 5 rats per group). *p < 0.05; **p < 0.01; ***p < 0.001.
