Figure 6
From: Foot strike pattern during running alters muscle-tendon dynamics of the gastrocnemius and the soleus

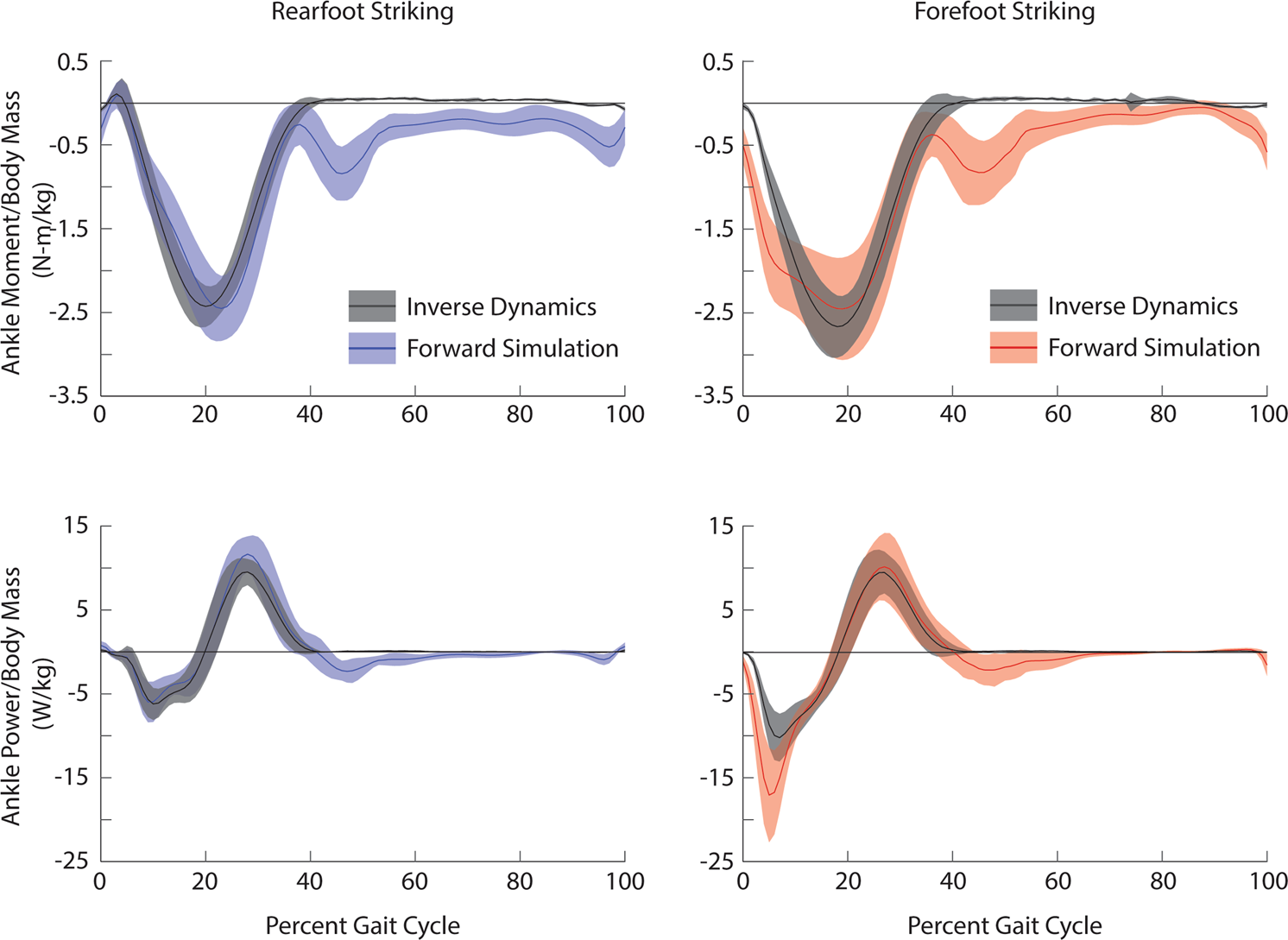

Ensemble average ± one standard deviation simulated ankle joint moments (top) and powers (bottom) estimated from forward simulations and inverse dynamics during rearfoot striking (left) and forefoot striking (right) during running. During the forward simulations, average simulated ankle joint moments were estimated based on contributions from the tibialis anterior, the medial and lateral gastrocnemii, and the soleus. Average ankle power was estimated by multiplying the summed moment with the ankle angular velocity. Forward simulation results for rearfoot and forefoot striking are shown in blue and red, respectively. Inverse dynamics results are shown in black.
