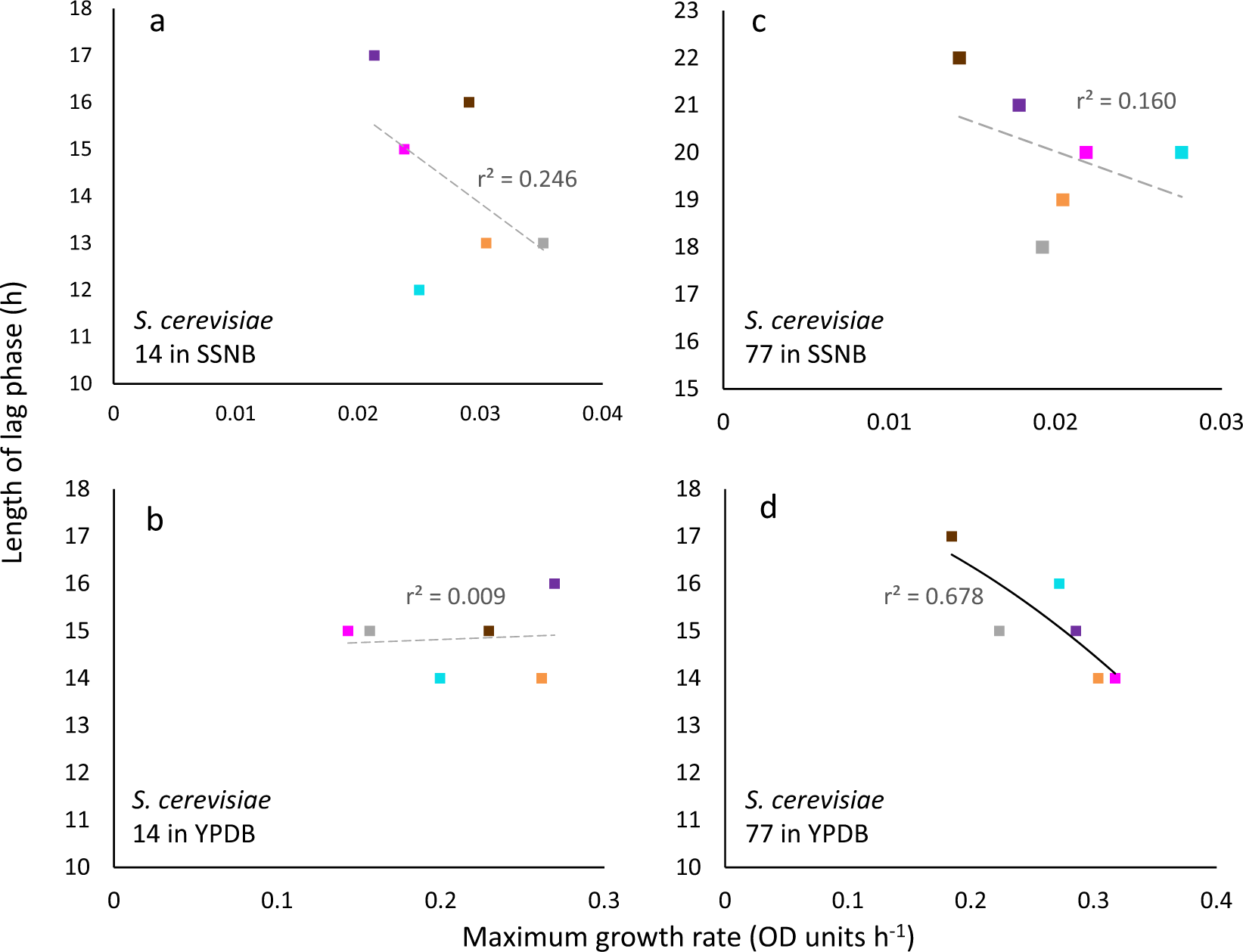

Figure 5
From: Microbial lag phase can be indicative of, or independent from, cellular stress
Length of lag phase versus maximum rate of growth at 23 °C: strain 14 in salt-supplemented nutrient broth (SSNB) (a) and yeast extract peptone dextrose broth (YPDB) (b); and strain 77 in SSNB (c) and YPDB (d). Cells suspended in water (not subjectied to any dehydration treatment) (pink squares), and cells suspended in 1 M xylitol (no dehydration treatment) (orange squares), were used as controls. For dehydrated cells, rehydration treatments were either rapid, using water (grey squares); rapid, using 1 M xylitol (brown dots); gradual, using water vapour then rapid in water (purple squares); or gradual rehydration with water vapor, then rapid in 1 M xylitol (turquoise squares). For strong correlations, trend lines are indicated by a solid black line (d), while inconsistency between lag and growth rates (i.e. no correlation was observed) is indicated by a dashed grey line (a–c).
