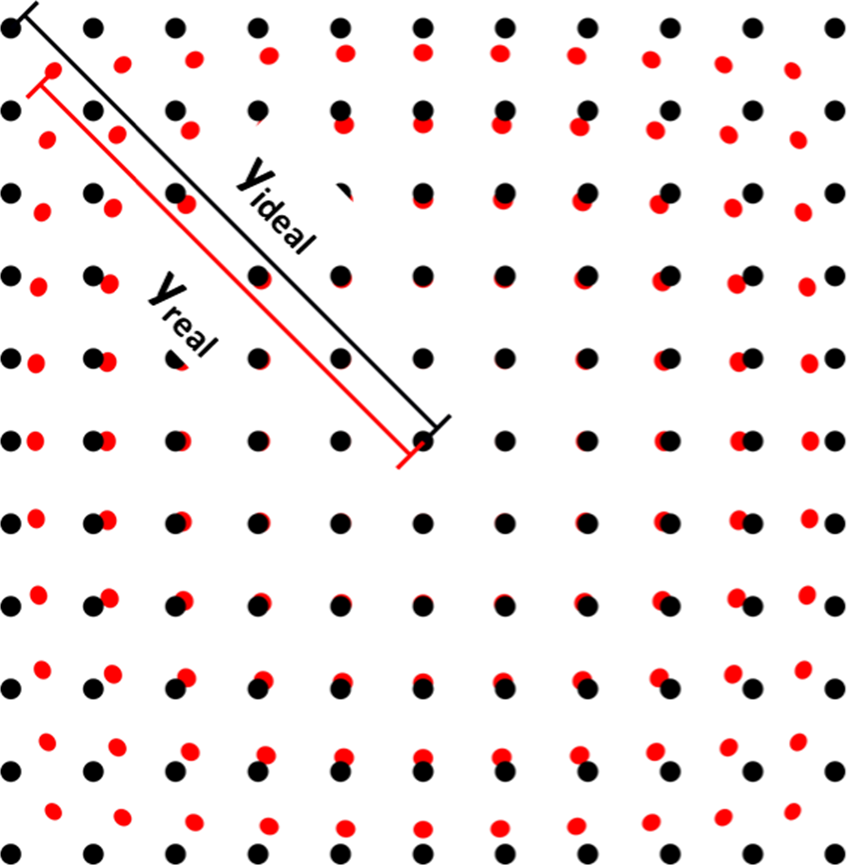

Figure 1

Schematic of barrel shaped distortion of a dot pattern. Black pattern represent the undistorted (ideal) pattern, while the red one stands for the barrel distorted (real) pattern. The diagonal lines y_ideal (black) and y_real are illustrated for upper left quadrant of the image.
