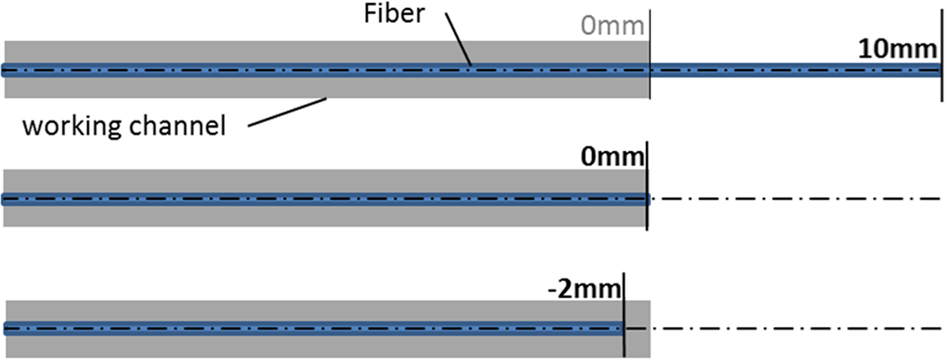

Figure 5
Destruction experiment set-up; the fibre is withdrawn in the working channel in 1 mm steps from 10 mm (fibre tip to distal end of working channel) to −2 mm. Exemplary the fibre positions for 10 mm, 0 mm and −2 mm are shown.
