Figure 5
From: Real-time Burn Classification using Ultrasound Imaging

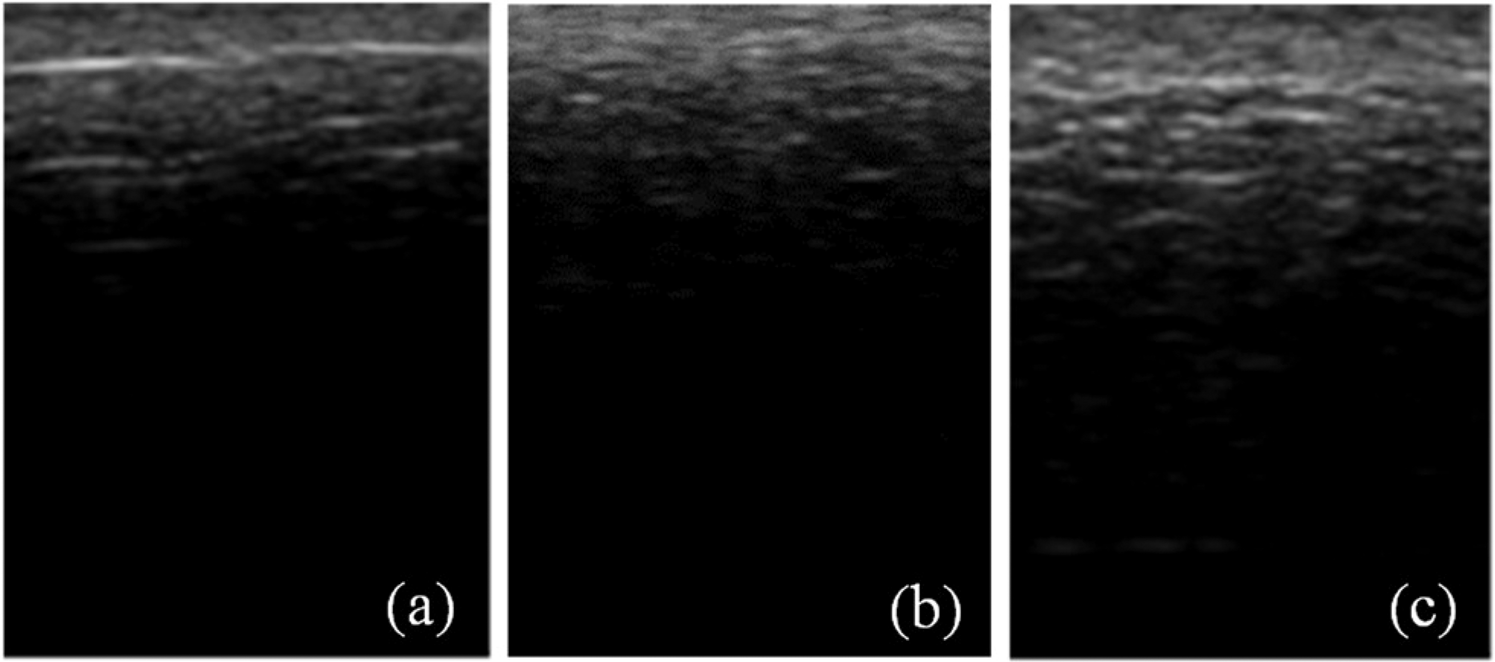

The ultrasound images of dimension 1.5 cm × 1.1 cm of porcine skin tissues showing a gradual increase in speckles with increasing burn severity starting from (a) unburned state to burn at 200 °F for (b) 10 s, (c) 30 s.
