Figure 7

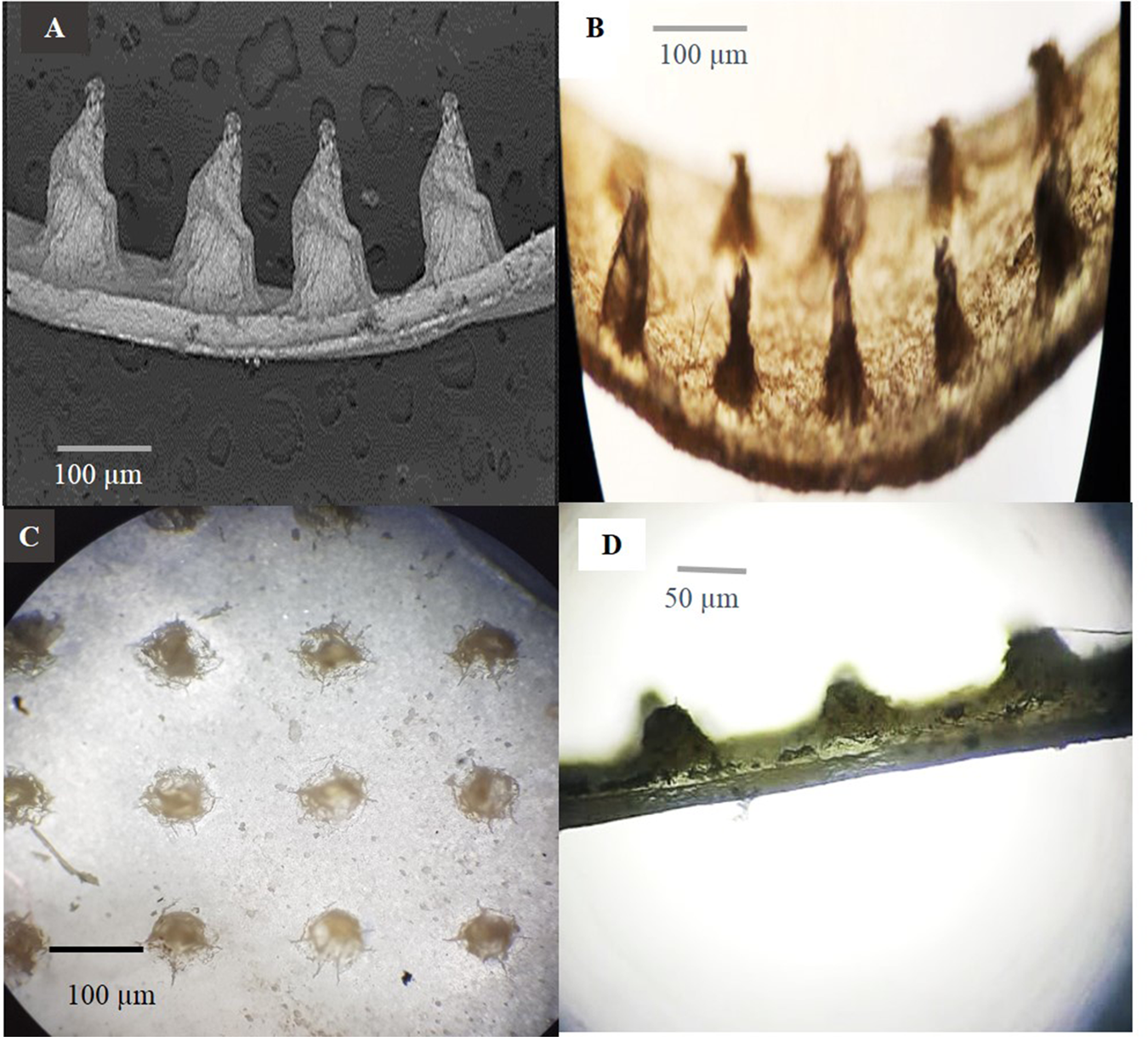

Cross sectional images of 10 × 10 MN arrays form: (A) Side view image by SEM, (B) Side view; (C) Top view; (D) Side view after insertion into the skin for 15 min as an evidence for complete dissolving of MN tips. Images (B–D) viewed by light microscope.
