From: Closing the sea surface mixed layer temperature budget from in situ observations alone: Operation Advection during BoBBLE

Figure 3The alternative text for this image may have been generated using AI.

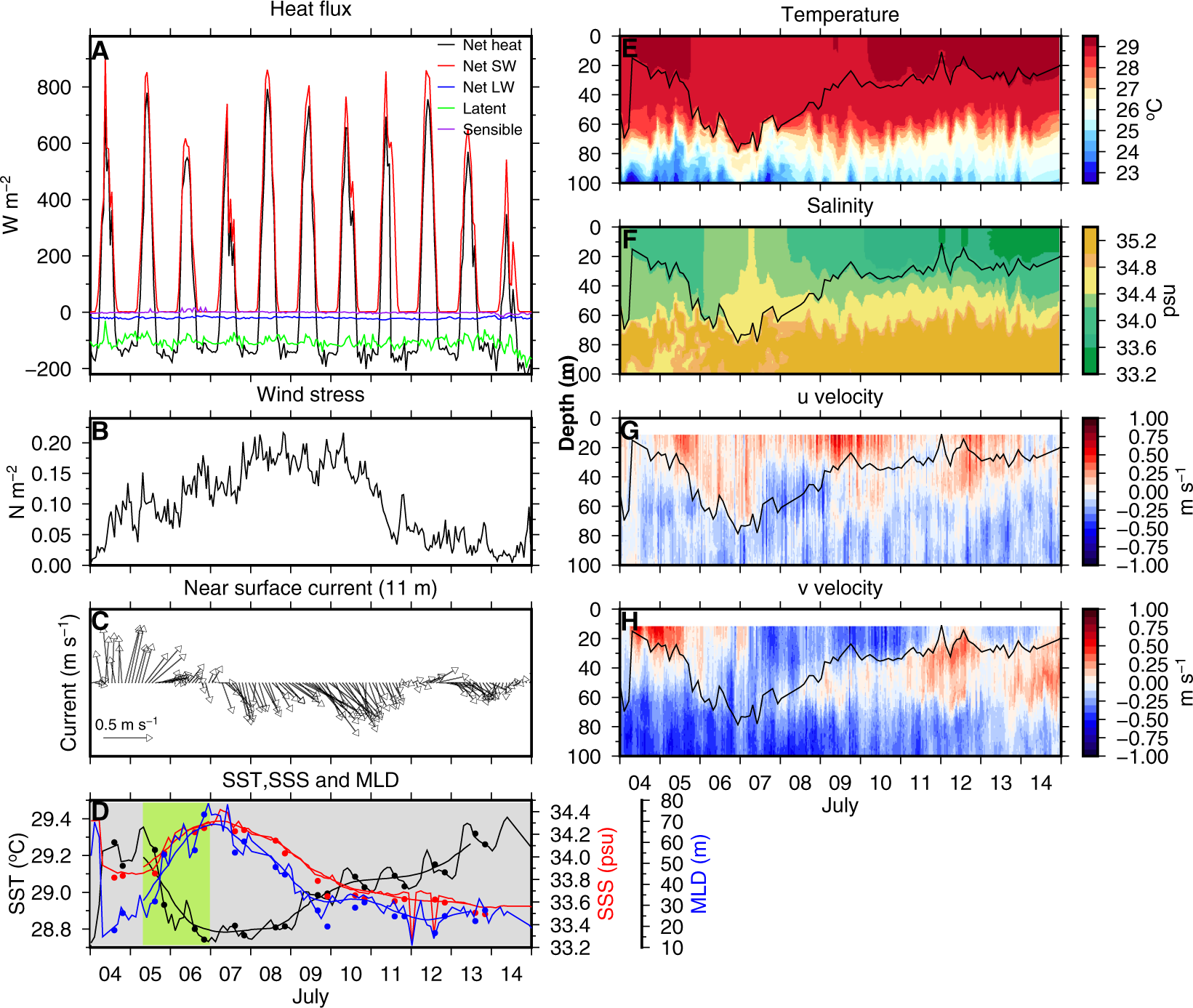

Time series of (A) surface heat fluxes, (B) wind stress, (C) near-surface current velocity, (D) SST, SSS and MLD. Vertical structure of (E) temperature, (F) salinity, (G) u and (H) v components of current velocity at TSE during 4–14 July 2016. 24 hours low-pass filtered SST, SSS and MLD are shown using thick curves in (D). Filled circles in (D) are from the daily measurements from the uCTD. Warming (cooling) events are highlighted using a grey (green) background colour in (D). MLD is shown using a black curve in (E–H). Time axis is in UTC.
