Figure 5

From: Modelling fundamental diagrams according to different water film depths from the perspective of the dynamic hydraulic pressure

Figure 5

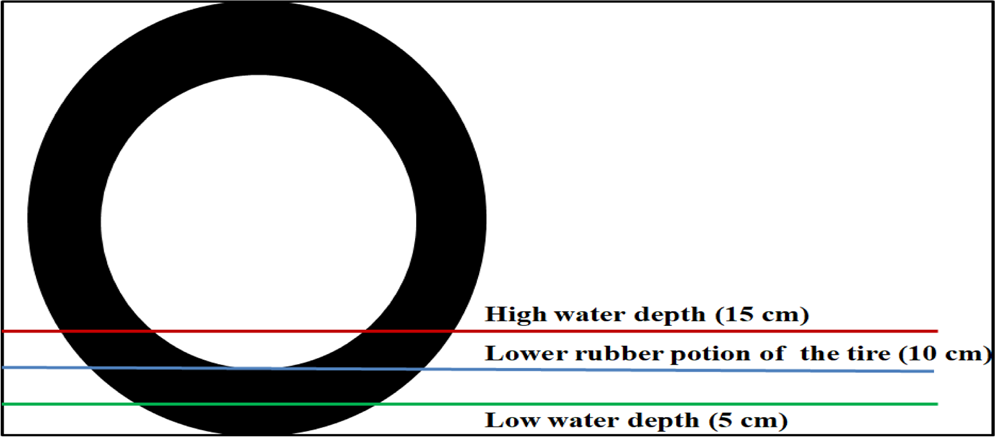

Method for evaluating the water film depth16. We considered 10 cm as the standard height of the lower rubber portion of a tire. If the water film depth exceeded the lower rubber portion of a tire, it was considered to be greater than 10 cm. If the depth was within the lower rubber portion of the tire, it was considered to be less than 10 cm.
