Figure 6
From: Factors governing outbreak dynamics in a forest intensively managed for mountain pine beetle

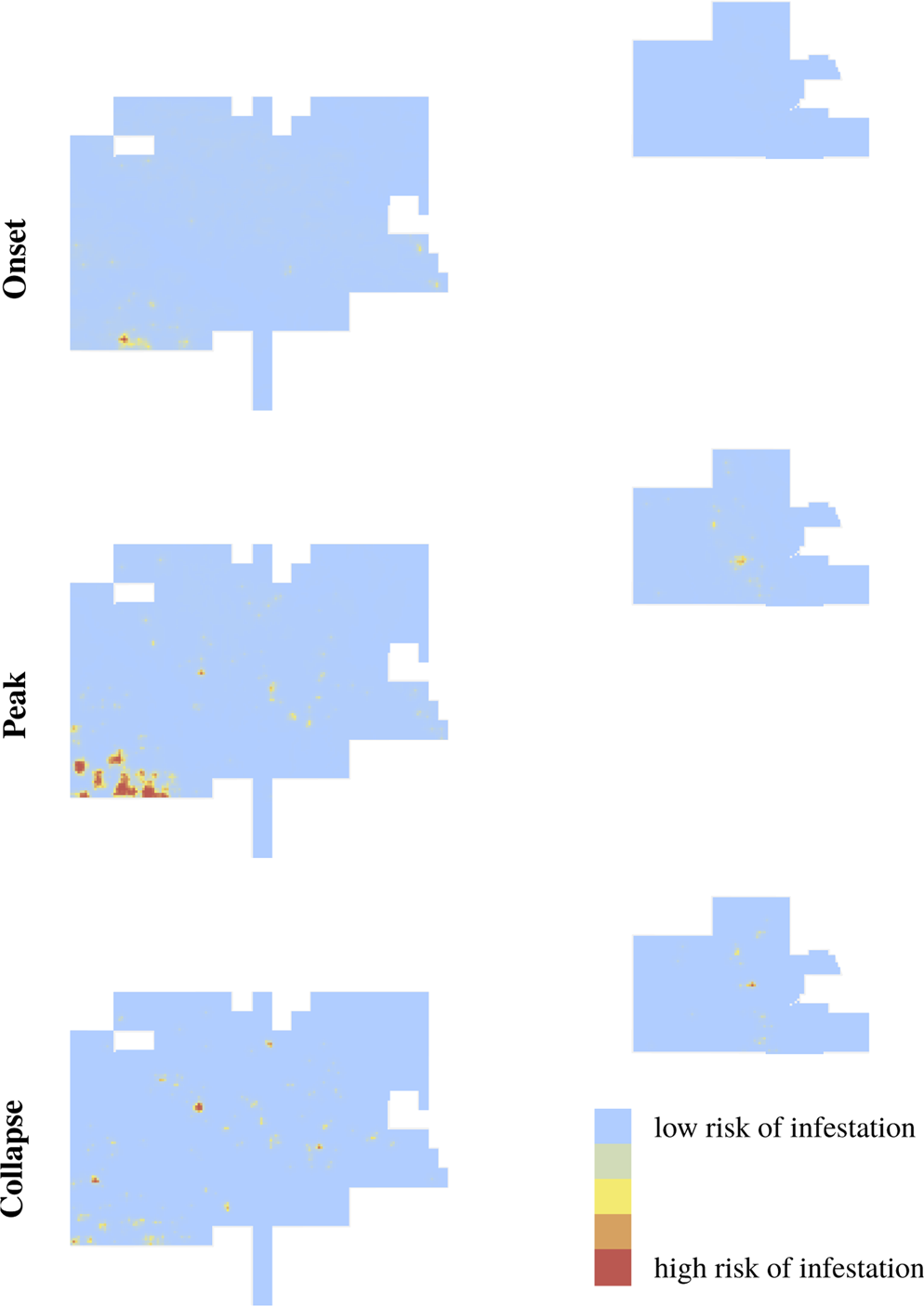

Maps of the predicted infestation probabilities \(\pi (\underline{\beta })\) using the parameters from the best model for each outbreak phase. The onset is represented by the year 2009, the peak by the year 2013, and the collapse by the year 2016. For each outbreak phase, the prediction patterns are similar among years. The risk of infestation ranges from low (blue) to high (red).
