Figure 4

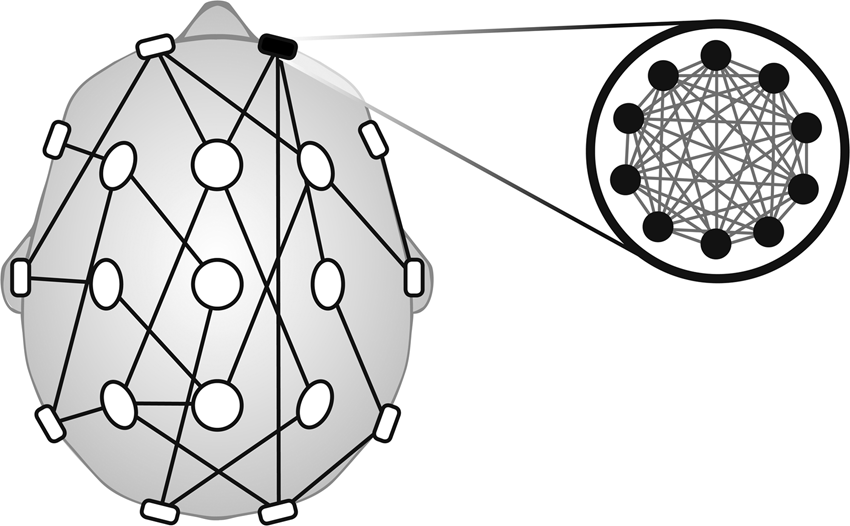

Schematic of Dynamic Network Model. Schematic drawing of a particular dynamic network model: each individual region is a model representation of coupled Kuramoto oscillators, and the connectivity between the regions is determined by the PLF values. The internal coupling strength within a population is determined by the power in the corresponding electrode.
