Figure 3
From: Rhythms of Transcription in Field-Grown Sugarcane Are Highly Organ Specific

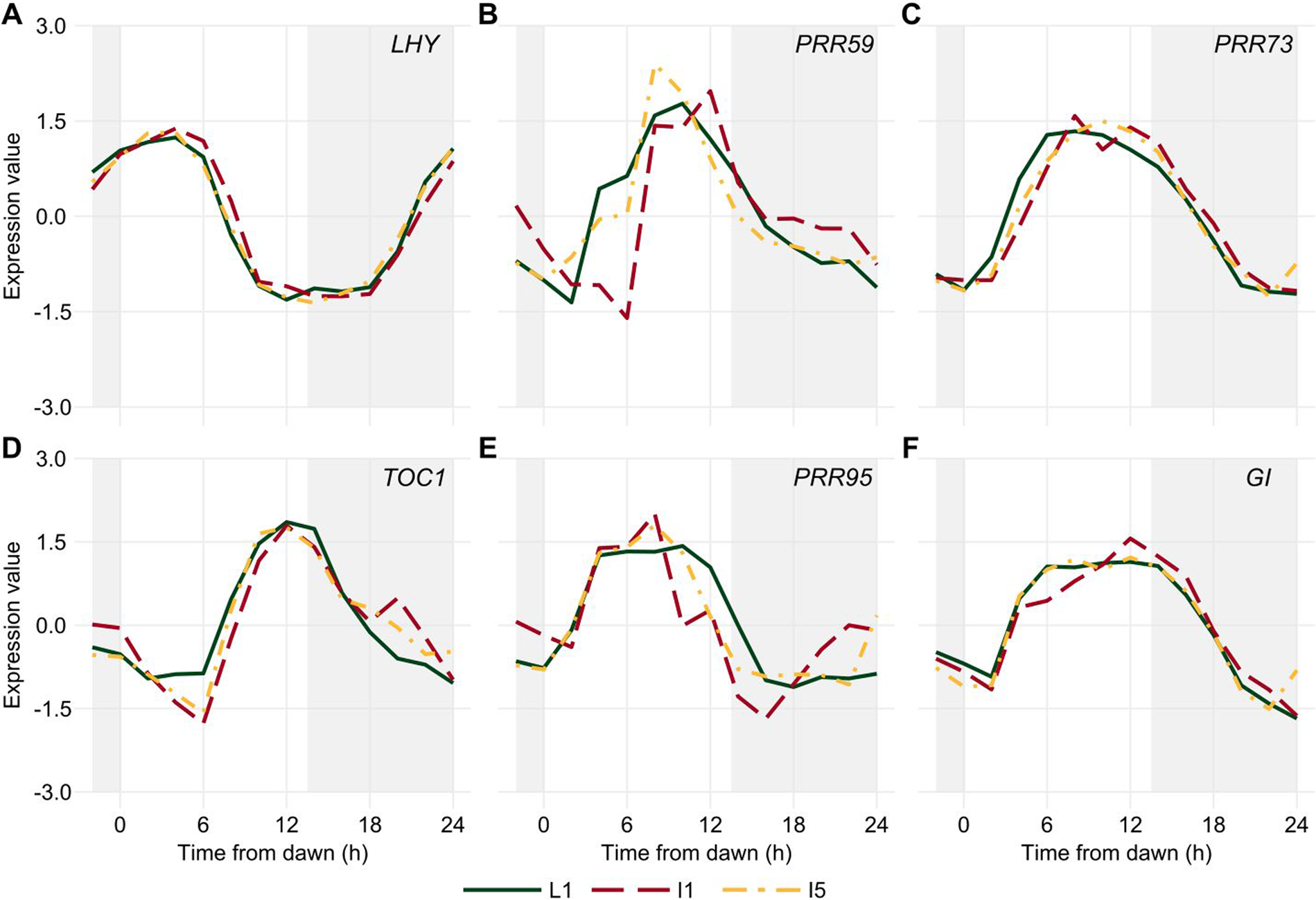

Diel rhythms of Central Oscillator transcripts in sugarcane organs. LHY (A), PRR59 (B), PRR73 (C), TOC1 (D), PRR95 (E), and GI (F) rhythms were measured in leaf +1 (L1, green continuous line), internodes 1 and 2 (I1, red dashed line), and internode 5 (I5, yellow dash-dotted line) of field-grown sugarcane using oligoarrays. Time series were normalized using Z-score. The light-gray boxes represent the night periods.
