Figure 4
From: Rhythms of Transcription in Field-Grown Sugarcane Are Highly Organ Specific

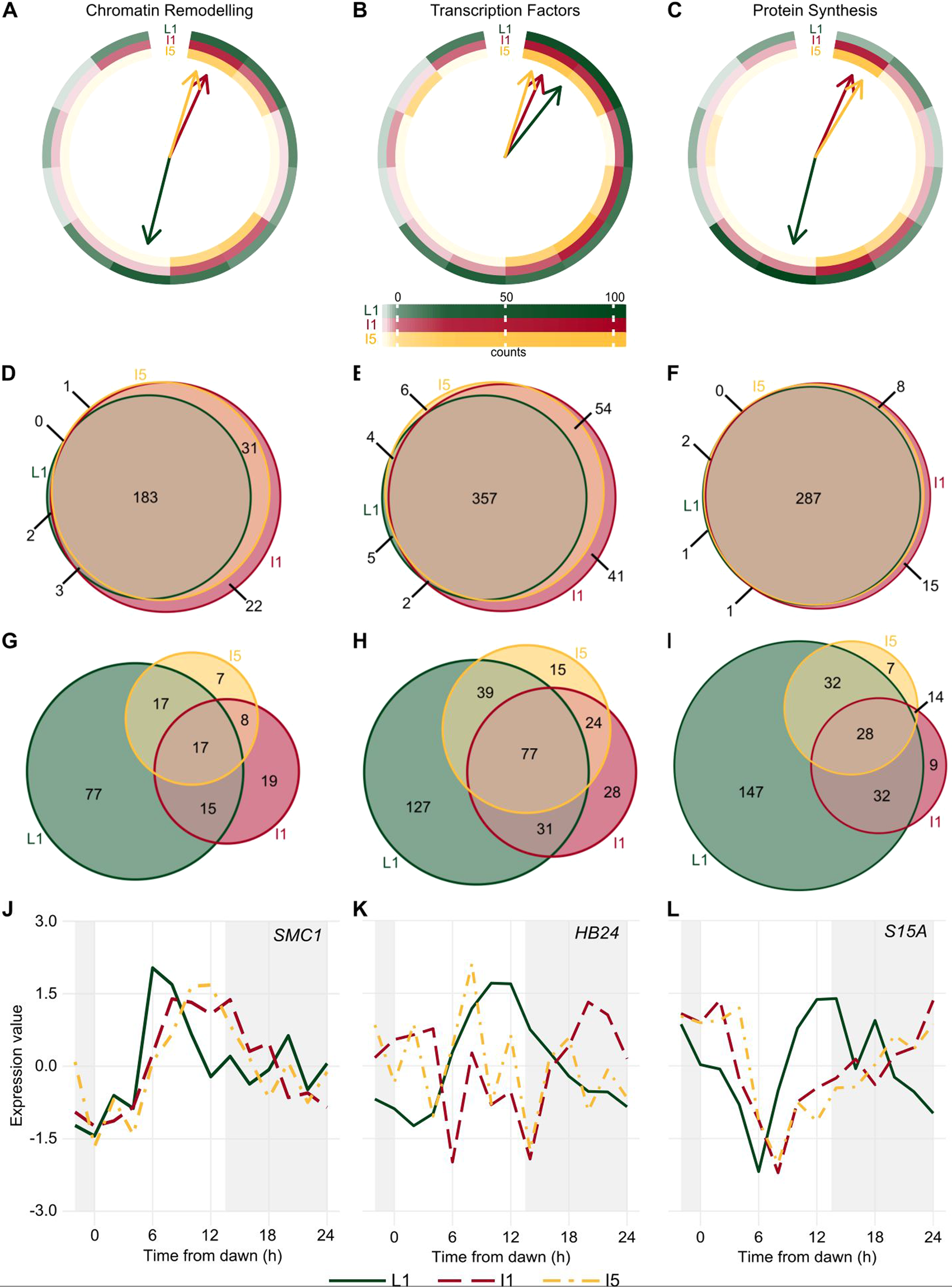

Transcripts associated with Genetic Information Processing have different rhythms in sugarcane organs. (A–C) Circular heatmap of the distribution of the peak time of rhythmic transcripts related to Chromatin Remodeling (A), Transcription Factors (B), and Protein Synthesis (C) in leaf +1 (L1, green), internodes 1 and 2 (I1, red), and internode 5 (I5, yellow). The colored arrows show the time at which the most transcripts are found in each organ. (D–I) Euler diagrams of all expressed transcripts (D–F) and rhythmic transcripts (G–I) in L1, I1, and I5 in field-grown sugarcane in diel conditions. (J–L) SMC1 (J), HB24 (K), and S15A (L) rhythms measured in L1 (continuous green line), I1 (red dashed line), and I5 (yellow dash-dotted line) of field-grown sugarcane using oligoarrays. Time series were normalized using Z-score. The light-gray boxes represent the night periods.
