Figure 3 | Scientific Reports

Figure 3

From: High expression of oxidative phosphorylation genes predicts improved survival in squamous cell carcinomas of the head and neck and lung

Figure 3

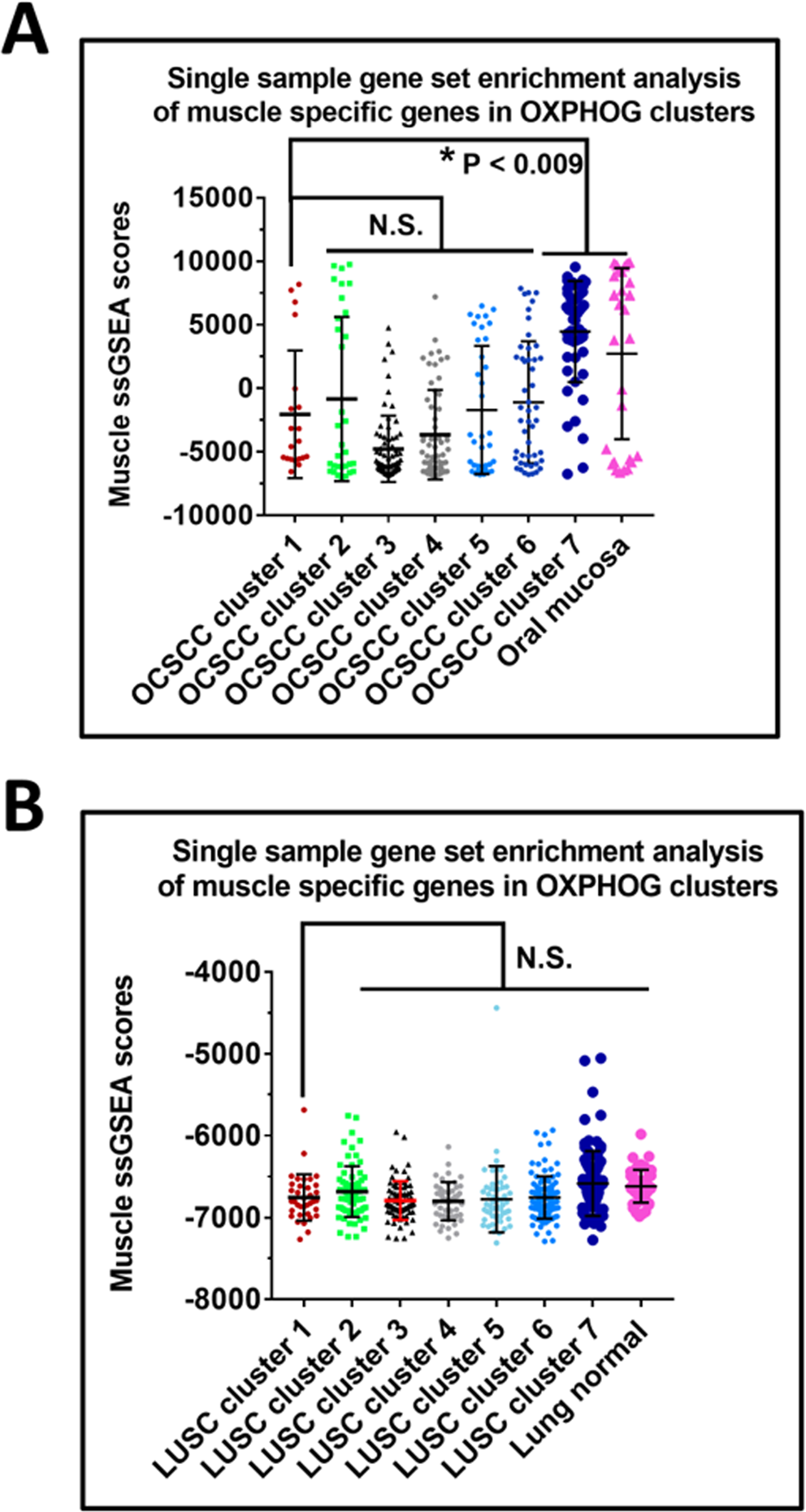

Elevated oxidative phosphorylation gene expression in tumors is not due to muscle contamination. The ssGSEA muscle scores for tumors in each cluster were compared to each other and to adjacent normal for (A) OCSCC and (B) LUSC. Although muscle contamination was present in some tumors and in normal oral samples, no significant differences were found between tumors in clusters 1, 2, and 3 in either OCSCC (A) or LUSC (B).
