Figure 3

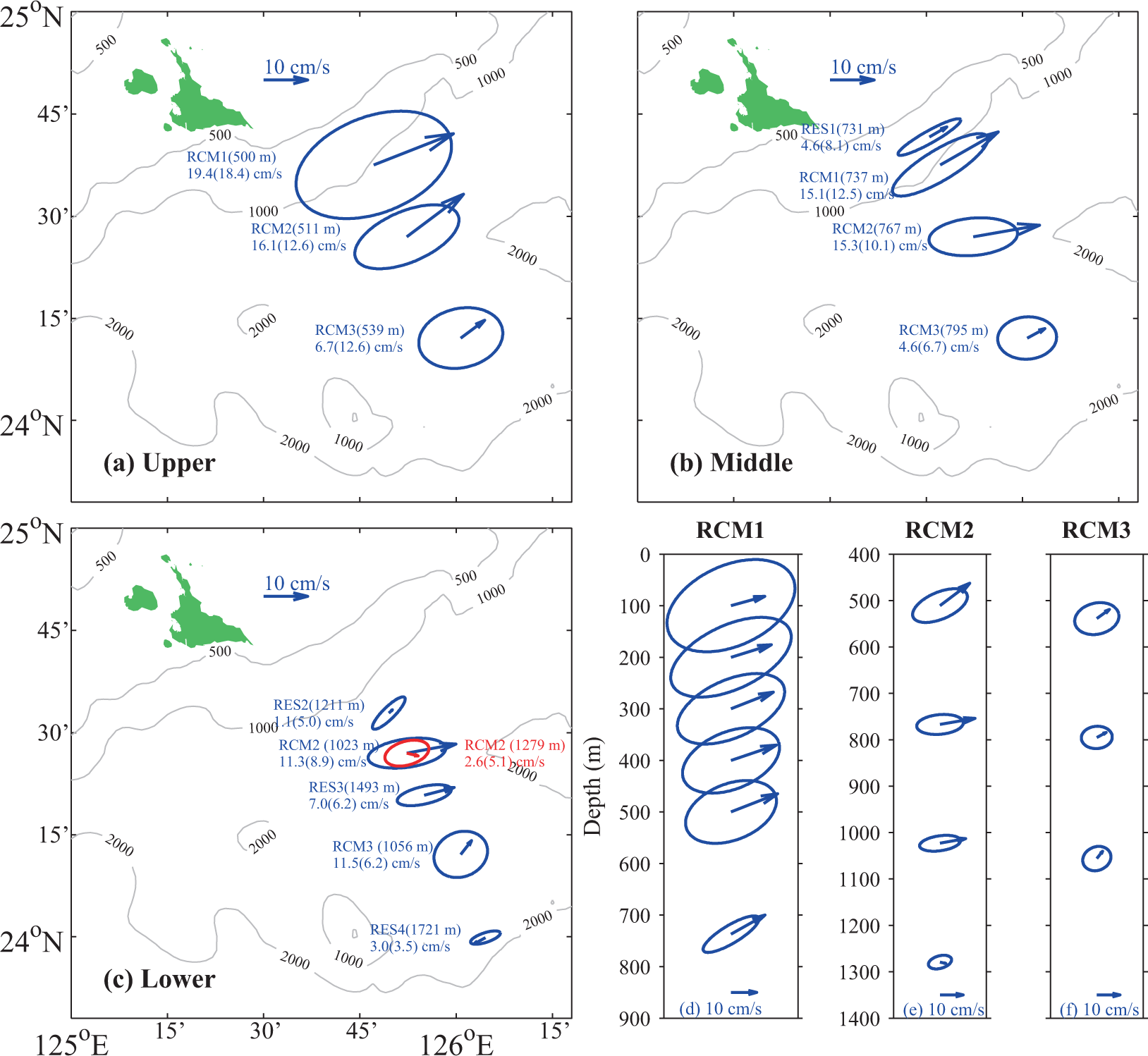

Vector-average velocities (arrows) and standard deviation ellipses for measured currents shown for three depth layers (a–c) and for three tall-mooring sites (d–f). Station name (depth) and current speed (ellipse semi-major axis) as marked. Bathymetric contours are in meters. Scale arrow (10 cm/s) in each panel also indicates eastward direction.
