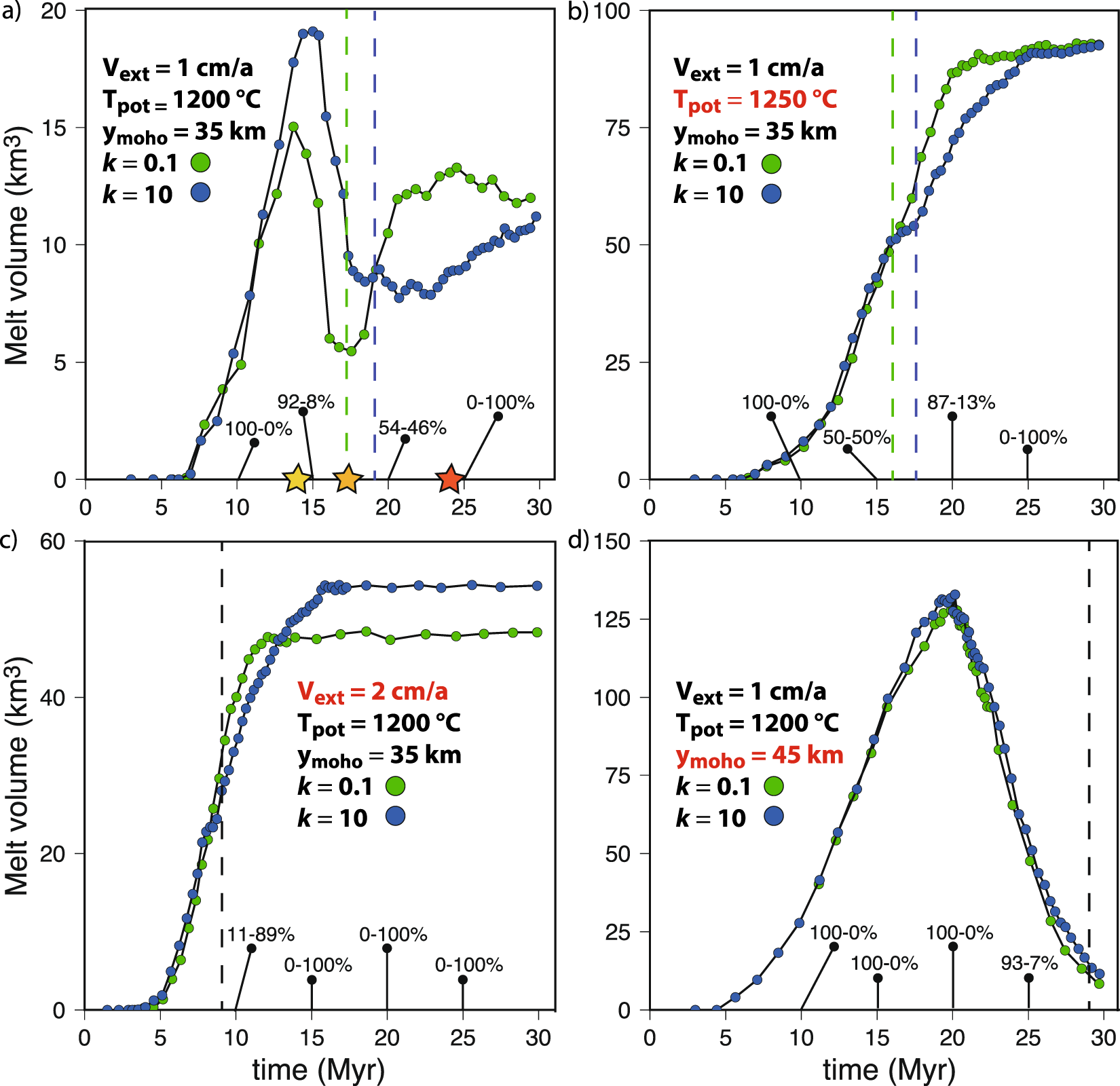

Figure 6
Parametric study results summary: (a–d) Melt volume (per unit distance in the direction perpendicular to those of the model domain) integrated across the model domain vs. time for eight selected numerical simulations. Imposed Vext, Tpot, ymoho, and k values for each numerical simulation are shown on the plots. Green and blue dot-lines denote numerical simulations with inefficient and efficient surface processes, respectively. The mean percentage of crustal and mantle melts at selected timesteps (10, 15, 20, and 25 Myr) is respectively displayed on each plot. The vertical dashed lines indicate the time of continental breakup (i.e. final rupturing of the extended continental mantle and crustal material). If black, then continental breakup in the simulation with efficient and inefficient surface processes occur at the same time. The yellow, orange and red stars in panel (a) (reference model setup) show the timing of panels (a), (b) and (c), respectively, in Fig. 7. The figure was generated with MATLAB version R2017 and assembled with Adobe Illustrator version 24.0.1.
