Figure 3

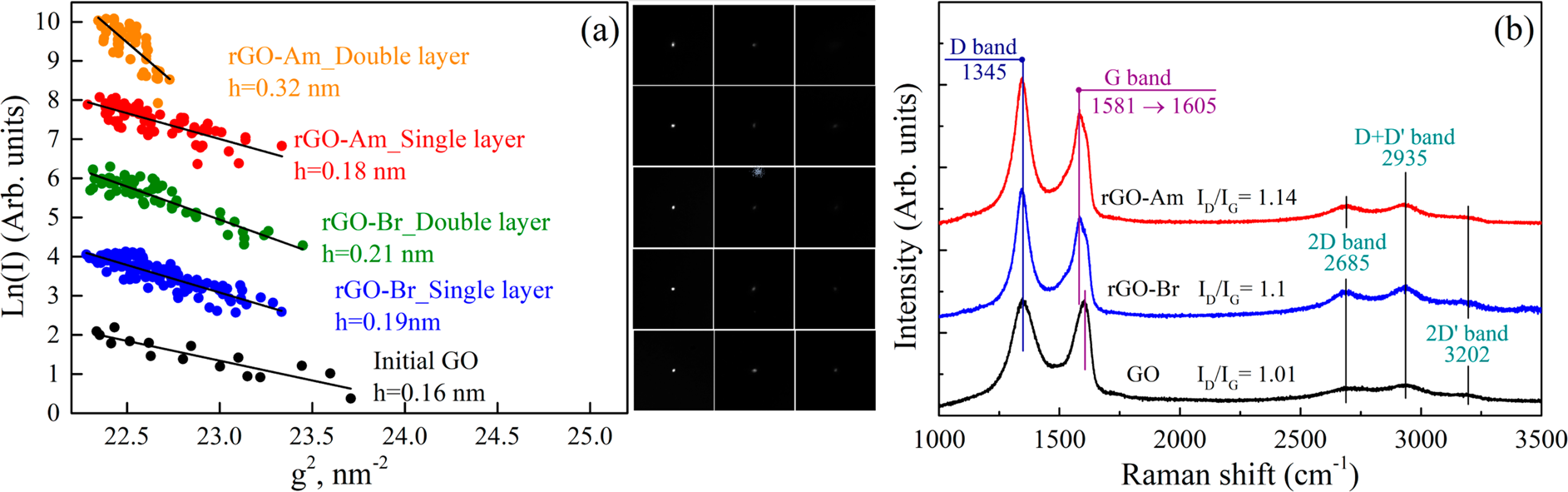

(a) (100) diffraction spot intensity logarithm versus reciprocal space applicate. The corresponding slopes are related to the average square of the sheet corrugation amplitude. The plots were vertically offset for clarity. Inset – the corresponding electron diffraction refluxes. (b) Raman spectra of the GO, rGO-Br and rGO-Am samples recorded using a 532-nm laser.
