Figure 10
From: High-order mode suppression in double-clad optical fibers by adding absorbing inclusions

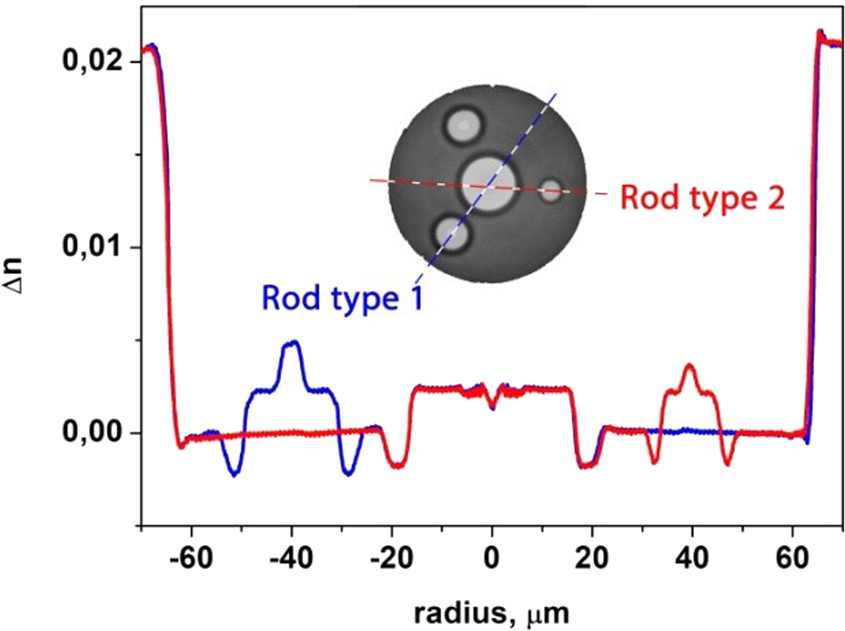

Measured fiber RIPs. The colored lines show the measured RIP cross-section, and the inset shows an image of the fiber end obtained with an optical microscope.
