Figure 3
From: High-order mode suppression in double-clad optical fibers by adding absorbing inclusions

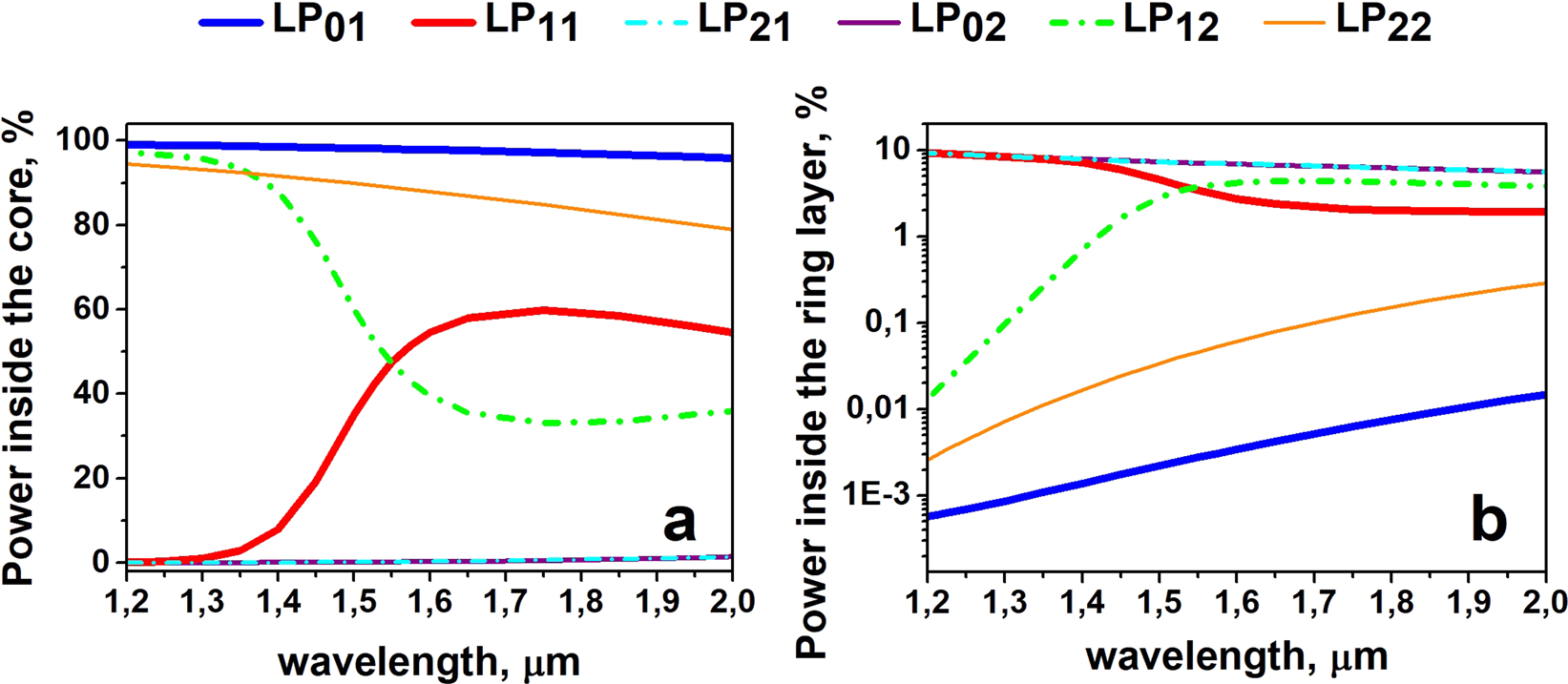

Calculated spectral dependence of the power fraction located in the core (a) and high-index absorbing layer of “resonant” width (b) for the different modes.
